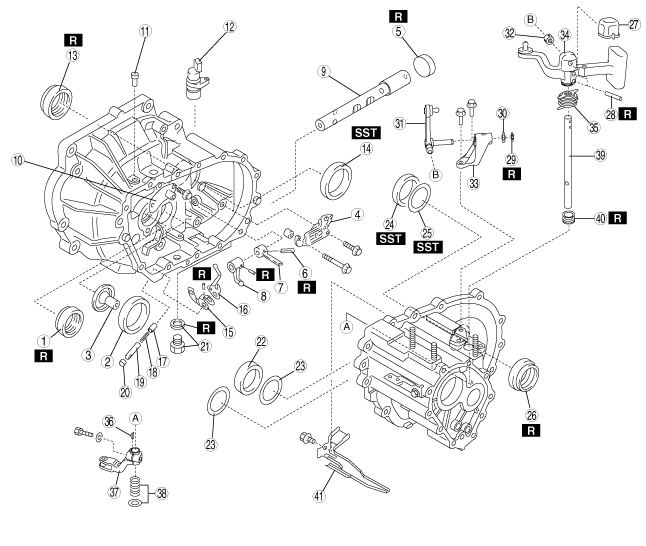

CLUTCH HOUSING AND TRANSAXLE CASE COMPONENTS DISASSEMBLY [TYPE A]
B3E051517010101
1. Disassemble in the order indicated in the table.
ide0515m5002
|
|
1
|
Oil seal (primary shaft)
|
|
2
|
Bearing race (secondary shaft)
|
|
3
|
Funnel
|
|
4
|
Guide plate component
|
|
5
|
Sealing cap
|
|
6
|
Roll pin
(See Roll Pin Disassembly Note.)
|
|
7
|
Selector
|
|
8
|
Change arm
|
|
9
|
Control rod
(See Control Rod Disassembly Note.)
|
|
10
|
Breather cover component
|
|
11
|
Breather
|
|
12
|
Vehicle speed sensor
|
|
13
|
Oil seal (differential)
|
|
14
|
Bearing race (differential)
|
|
15
|
Lever set spring
|
|
16
|
Reverse lever
|
|
17
|
Push pin
|
|
18
|
Spring
|
|
19
|
Reverse lever shaft
|
|
20
|
Blind plug
|
|
21
|
Drain plug and washer
|
|
22
|
Bearing race (transaxle case)
|
|
23
|
Adjustment shim
|
|
24
|
Bearing race (differential)
|
|
25
|
Adjustment shim
|
|
26
|
Oil seal (differential)
|
|
27
|
Dust boot
|
|
28
|
Spring pin
|
|
29
|
Snap ring
|
|
30
|
Washer (if equiped)
|
|
31
|
Selector lever
|
|
32
|
Change bushing
|
|
33
|
Bracket
|
|
34
|
Shift lever
|
|
35
|
Dust boot
|
|
36
|
Key
|
|
37
|
Control end
|
|
38
|
Spring and washer
|
|
39
|
Shift lever shaft
|
|
40
|
Oil seal
|
|
41
|
Oil passage
|
Oil Seal (Primary Shaft) Disassembly Note
1. Remove the oil seal using a flathead screwdriver.
a6e5112m012
|
Bearing Race (Secondary Shaft) Disassembly Note
1. Remove the bearing race by lifting it and the funnel out together.
adj5112m008
|
Roll Pin Disassembly Note
1. Align the groove for removal of the clutch housing pin with the position of the roll pin, then tap the pin out using a pin punch.
ada5112m009
|
Control Rod Disassembly Note

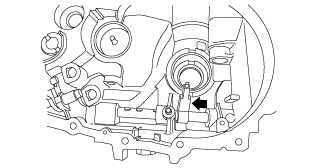

1. Move the control rod in the direction of the arrow.
a6e5112m005
|

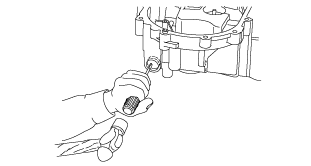

2. Using a flathead screwdriver and hammer, make a hole on the cap.
a6e5112m106
|

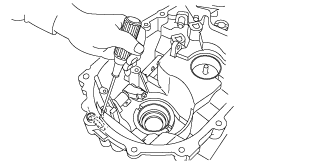

3. Pry the seal cap off, putting the flathead screwdriver into the hole, made in Step 2, from the inside of the transmission.
a6e5112m107
|
Oil Seal (Differential) Disassembly Note
1. Remove the oil seal using a flathead screwdriver.
a6e5112m016
|
Bearing Race (Differential) Disassembly Note
1. Remove the bearing outer race using the SST.
ada5112m010
|
Reverse Lever Shaft Disassembly Note
1. Remove the roll pin using pliers.
adj5112m011
|
2. Protect the reverse lever shaft with a rag and use pliers to remove the shaft.
adj5112m012
|
Bearing Race (Transaxle Case) Disassembly Note
1. Remove the bearing race using the SST.
ada5112m013
|
Oil Seal (Shift Lever Component) Disassembly Note
1. Remove the oil seal using a flathead screwdriver.
adj5112m083
|
