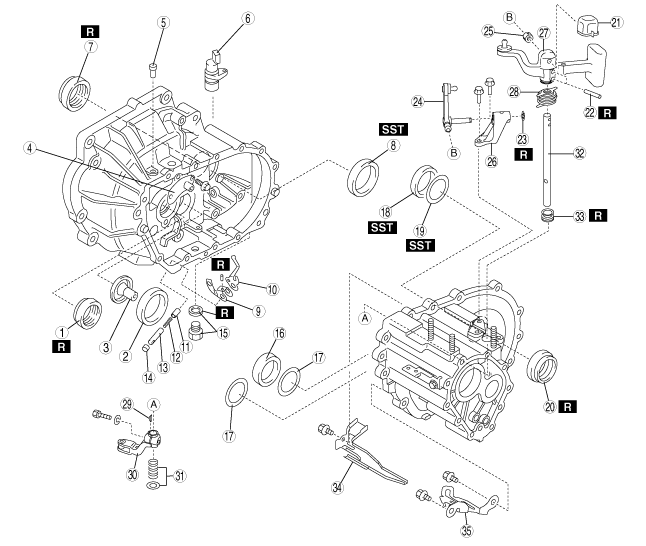

CLUTCH HOUSING AND TRANSAXLE CASE COMPONENTS DISASSEMBLY [TYPE B]
B3E051517010103
1. Disassemble in the order indicated in the table.
ide0515m5003
|
|
1
|
Oil seal (primary shaft)
|
|
2
|
Bearing race (secondary shaft)
|
|
3
|
Funnel
|
|
4
|
Breather cover component
|
|
5
|
Breather
|
|
6
|
Vehicle speed sensor
|
|
7
|
Oil seal (differential)
|
|
8
|
Bearing race (differential)
|
|
9
|
Lever set spring
|
|
10
|
Reverse lever
|
|
11
|
Push pin
|
|
12
|
Spring
|
|
13
|
Reverse lever shaft
|
|
14
|
Blind plug
|
|
15
|
Drain plug and washer
|
|
16
|
Bearing race (transaxle case)
|
|
17
|
Adjustment shim
|
|
18
|
Bearing race (differential)
|
|
19
|
Adjustment shim
|
|
20
|
Oil seal (differential)
|
|
21
|
Dust boot
|
|
22
|
Spring pin
|
|
23
|
Snap ring
|
|
24
|
Selector lever
|
|
25
|
Cahnge bushing
|
|
26
|
Bracket
|
|
27
|
Shift lever
|
|
28
|
Dust boot
|
|
29
|
Key
|
|
30
|
Control end
|
|
31
|
Spring and washer
|
|
32
|
Shift lever shaft
|
|
33
|
Oil seal
|
|
34
|
Oil passage
|
|
35
|
Guide plate component
|

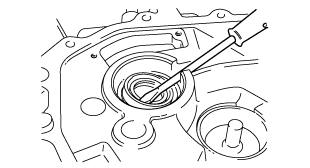

Oil Seal (Primary Shaft) Disassembly Note
1. Remove the oil seal using a flathead screwdriver.
a6e5112m012
|

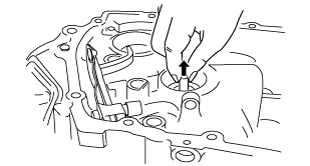

Bearing Race (Secondary Shaft) Disassembly Note
1. Remove the bearing race by lifting it and the funnel out together.
adj5112m008
|

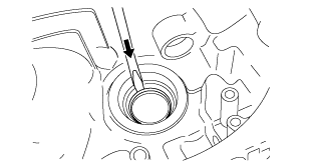

Oil Seal (Differential) Disassembly Note
1. Remove the oil seal using a flathead screwdriver.
a6e5112m016
|
Bearing Race (Differential) Disassembly Note
1. Remove the bearing outer race using the SST.
ada5112m010
|
Reverse Lever Shaft Disassembly Note

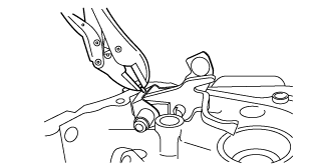

1. Remove the roll pin using pliers.
adj5112m011
|

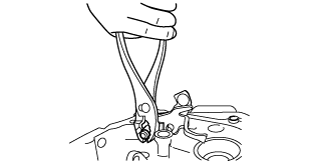

2. Protect the reverse lever shaft with a rag and use pliers to remove the shaft.
adj5112m012
|
Bearing Race (Transaxle Case) Disassembly Note
1. Remove the bearing race using the SST.
ada5112m013
|

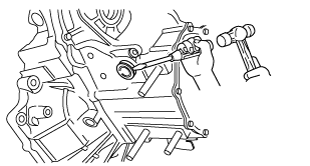

Oil Seal (Shift Lever Component) Disassembly Note
1. Remove the oil seal using a flathead screwdriver.
adj5112m083
|
