PRIMARY SHAFT COMPONENTS PREINSPECTION
B3E051517201101
3rd Gear Thrust Clearance

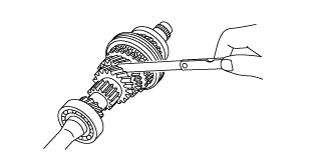

1. Measure the clearance between 3rd gear and 2nd gear.
-
• If it exceeds the maximum specification, inspect the contact surfaces of the 3rd gear, 2nd gear and 3rd/4th clutch hub. Replace worn and damaged parts.
Standard clearance
-
0.06-0.21 mm {0.002-0.008 in}
Maximum clearance
-
0.26 mm {0.010 in}
4th Gear Thrust Clearance

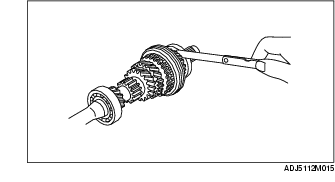

1. Measure the clearance between 4th gear and the bearing.
-
• If it exceeds the maximum specification, inspect the contact surfaces of the 4th gear, bearing, and 3rd/4th clutch hub. Replace worn and damaged parts.
Standard clearance
-
0.21-0.61 mm {0.008-0.024 in}
Maximum clearance
-
0.66 mm {0.026 in}
