SECONDARY SHAFT COMPONENTS PREINSPECTION

1st Gear Thrust Clearance Inspection

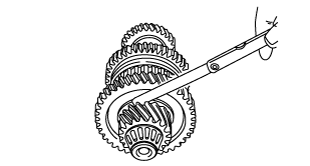

1. Measure the clearance between 1st gear and the differential drive gear.

• If it exceeds the maximum specification, inspect the contact surfaces of the 1st gear, differential drive gear of the secondary shaft gear, and 1st/2nd clutch hub component. Replace worn and damaged parts.

0.05-0.28 mm {0.002-0.011 in}

0.33 mm {0.013 in}

2nd Gear Thrust Clearance Inspection

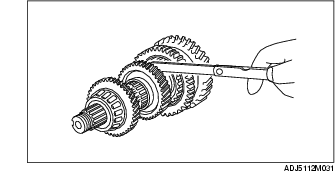

1. Measure the clearance between 2nd gear and secondary 3rd gear.

• If it exceeds the maximum specification, inspect the contact surfaces of the 2nd gear, secondary 3rd gear, and 1st/2nd clutch hub component. Replace worn and damaged parts.

0.18-0.51 mm {0.007-0.020 in}

0.56 mm {0.022 in}
