SECONDARY SHAFT COMPONENTS ASSEMBLY

b3e051517301104

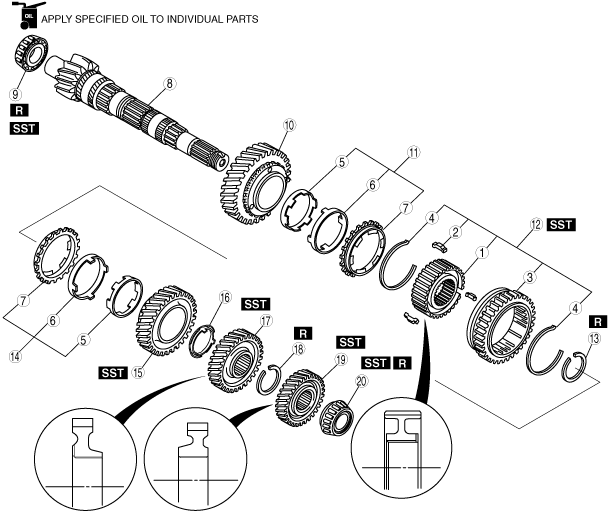

1.  Assemble in the order shown in the figure.

ada5112m139

1
1st/2nd clutch hub
(See 1st/2nd Clutch Hub Assembly Note.)
2
Synchronizer key
3
Clutch hub sleeve (reverse gear)
4
Synchronizer key spring
5
Inner cone
6
Double cone
7
Synchronizer ring
8
Secondary shaft gear
9
Bearing (secondary shaft end)
(See Bearing (Secondary Shaft End) Assembly Note.)
10
1st gear
(See 1st Gear, 1st Synchronizer Ring, and 1st/2nd Clutch Hub Component Assembly Note.)
11
Double cone component
12
1st/2nd clutch hub component
(See 1st/2nd Clutch Hub Assembly Note.)
13
Retaining ring
14
Double cone component
15
2nd gear
(See 2nd Synchronizer Ring, 2nd Gear, and Secondary 3rd Gear Assembly Note.)
16
Friction damper
17
Secondary 3rd gear
(See 2nd Synchronizer Ring, 2nd Gear, and Secondary 3rd Gear Assembly Note.)
18
Retaining ring
19
Secondary 4th gear
(See Secondary 4th Gear and Bearing Assembly Note.)
20
Bearing
(See Secondary 4th Gear and Bearing Assembly Note.)


1st/2nd Clutch Hub Assembly Note

1.  Install the synchronizer key springs in the clutch hub with the hooks in the grooves to hold the three synchronizer keys in place.

adj5112m023
adj5112m024

Synchronizer key
A: 19.00 mm {0.748 in}
B: 4.25 mm {0.167 in}
C: 5.00 mm {0.197 in}
a6e5110m131


Bearing (Secondary Shaft End) Assembly Note

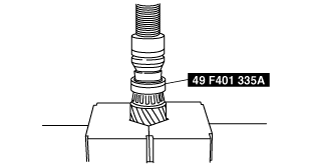

1.  Install the new bearing using the SST.

adj5112m040


1st Gear, 1st Synchronizer Ring, and 1st/2nd Clutch Hub Component Assembly Note

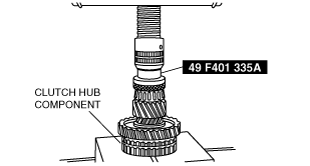

1.  Assemble the 1st gear, 1st synchronizer ring, inner cone, double cone and 1st/2nd clutch hub component, as shown in the figure.

2.  Press the 1st/2nd clutch hub component on using the SST.

ada5112m041


2nd Synchronizer Ring, 2nd Gear, and Secondary 3rd Gear Assembly Note

1.  Install the 2nd synchronizer ring and 2nd gear.

2.  Install the secondary 3rd gear using the SSTs.

adj5112m042


Secondary 4th Gear and Bearing Assembly Note

1.  Install the secondary 4th gear and the bearing using the SSTs.

b3e515am3254

2.  Measure the clearance between the 1st gear and the differential drive gear.

ada5112m030

Standard clearance
0.05—0.28 mm {0.002—0.011 in}
Maximum clearance
0.33 mm {0.013 in}

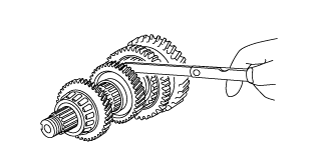

3.  Measure the clearance between the 2nd gear and the secondary 3rd gear.

adj5112m031

•  If it exceeds the maximum specification, reassemble the secondary shaft component.
Standard clearance
0.18—0.51 mm {0.007—0.020 in}
Maximum clearance
0.56 mm {0.022 in}
