PRIMARY SHAFT COMPONENTS DISASSEMBLY

b3e051517201102

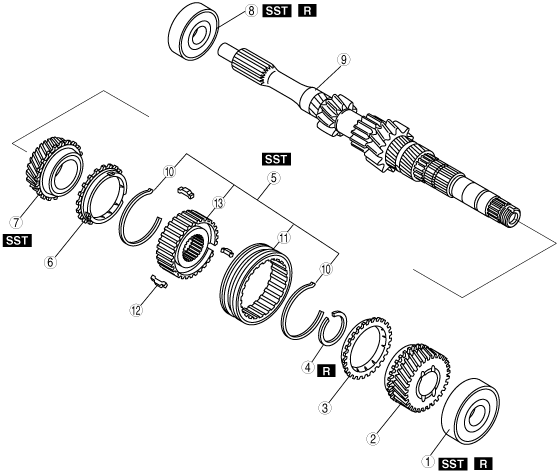

1.  Disassemble in the order indicated in the table.

adj5112m016

1	Bearing (4th gear end) (See Bearing (4th Gear End) Disassembly Note.)
2	4th gear
3	4th synchronizer ring
4	Retaining ring
5	3rd/4th clutch hub component (See 3rd/4th Clutch Hub Component, 3rd Synchronizer Ring and 3rd Gear Disassembly Note.)
6	3rd synchronizer ring (See 3rd/4th Clutch Hub Component, 3rd Synchronizer Ring and 3rd Gear Disassembly Note.)
7	3rd gear (See 3rd/4th Clutch Hub Component, 3rd Synchronizer Ring and 3rd Gear Disassembly Note.)
8	Bearing (primary shaft end) (See Bearing (Primary Shaft End) Disassembly Note.)
9	Primary shaft gear
10	Synchronizer key spring
11	3rd/4th clutch hub sleeve
12	Synchronizer key
13	3rd/4th clutch hub

Bearing (4th Gear End) Disassembly Note

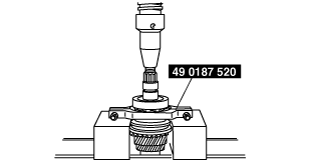

1.  Remove the bearing using the SST.

b3e515sim001

3rd/4th Clutch Hub Component, 3rd Synchronizer Ring and 3rd Gear Disassembly Note

1.  Remove the retaining ring.

2.  Remove the 3rd/4th clutch hub component, 3rd synchronizer ring, and 3rd gear using the SST.

b3e515sim001

Bearing (Primary Shaft End) Disassembly Note

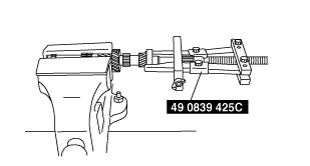

1.  Remove the bearing using the SST.

adj5112m019

Caution

•  Use protective plates in the vise to prevent damage to the primary shaft gear.
