DTC P0537:00 [MZR 1.3, MZR 1.5]
id0102f8705200
DTC P0537:00 |
Evaporator temperature sensor circuit low input |
---|---|
DETECTION CONDITION
|
• If the input voltage is less than 0.08 V for 16 s or more, the PCM determines that the evaporator temperature sensor circuit has a malfunction.
Diagnostic support note
• This is a continuous monitor (other).
• The MIL does not illuminate.
• FREEZE FRAME DATA (Mode 2)/Snapshot data is not available.
• The DTC is stored in the PCM memory.
|
POSSIBLE CAUSE
|
• Evaporator temperature sensor connector or terminals malfunction
• Evaporator temperature sensor malfunction

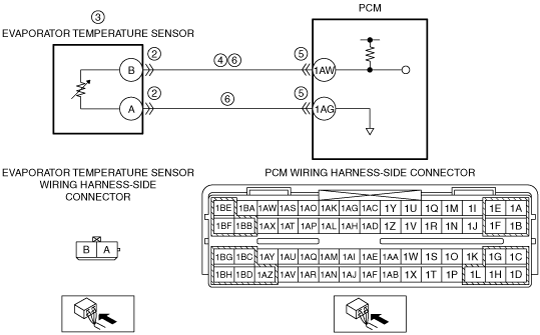

• Short to ground in wiring harness between evaporator temperature sensor terminal B and PCM terminal 1AW
• PCM connector or terminals malfunction
• Evaporator temperature sensor signal circuit and ground circuit are shorted to each other
• PCM malfunction
|
![]() |
Diagnostic procedure
STEP |
INSPECTION |
ACTION |
|
---|---|---|---|
1
|
VERIFY RELATED SERVICE INFORMATION AVAILABILITY
• Verify related Service Information availability.
• Is any related Service Information available?
|
Yes
|
Perform repair or diagnosis according to the available Service Information.
• If the vehicle is not repaired, go to the next step.
|
No
|
Go to the next step.
|
||
2
|
INSPECT EVAPORATOR TEMPERATURE SENSOR CONNECTOR CONDITION
• Turn the ignition switch off.
• Disconnect the evaporator temperature sensor connector.
• Inspect for poor connection (such as damaged/pulled-out pins, corrosion).
• Is there any malfunction?
|
Yes
|
Repair or replace the connector and/or terminals, then go to Step 7.
|
No
|
Go to the next step.
|
||
3
|
CLASSIFY EVAPORATOR TEMPERATURE SENSOR MALFUNCTION OR WIRING HARNESS MALFUNCTION
• Reconnect all disconnected connectors.
• Access the A/CT V PID using the M-MDS.
• Verify and compare the A/CT V PID values when disconnecting and connecting evaporator temperature sensor connector.
• Does the A/CT V PID value change?
|
Yes
|
Inspect the evaporator temperature sensor.
• Replace the evaporator temperature sensor, if necessary.
Go to Step 7.
|
No
|
Go to the next step.
|
||
4
|
INSPECT EVAPORATOR TEMPERATURE SENSOR SIGNAL CIRCUIT FOR SHORT TO GROUND
• Evaporator temperature sensor connector is disconnected.
• Turn the ignition switch off.
• Inspect for continuity between evaporator temperature sensor terminal B (wiring harness-side) and body ground.
• Is there continuity?
|
Yes
|
If the short to ground circuit could be detected:
• Repair or replace the wiring harness for a possible short to ground.
If the short to ground circuit could not be detected:
• Replace the PCM (short to ground in the PCM internal circuit).
Go to Step 7.
|
No
|
Go to the next step.
|
||
5
|
INSPECT PCM CONNECTOR CONDITION
• Disconnect the PCM connector.
• Inspect for poor connection (such as damaged/pulled-out pins, corrosion).
• Is there any malfunction?
|
Yes
|
Repair or replace the connector and/or terminals, then go to Step 7.
|
No
|
Go to the next step.
|
||
6
|
INSPECT EVAPORATOR TEMPERATURE SENSOR SIGNAL CIRCUIT AND GROUND CIRCUIT FOR SHORT TO EACH OTHER
• Evaporator temperature sensor and PCM connectors are disconnected.
• Inspect for continuity between evaporator temperature sensor terminals B and A (wiring harness-side).
• Is there continuity?
|
Yes
|
Repair or replace the wiring harness for a possible short to each other, then go to the next step.
|
No
|
Go to the next step.
|
||
7
|
VERIFY DTC TROUBLESHOOTING COMPLETED
• Make sure to reconnect all disconnected connectors.
• Clear the DTC from the PCM memory using the M-MDS.
• Perform the KOEO or KOER self test.
• Is the same DTC present?
|
Yes
|
Repeat the inspection from Step 1.
• If the malfunction recurs, replace the PCM.
Go to the next step.
|
No
|
Go to the next step.
|
||
8
|
VERIFY AFTER REPAIR PROCEDURE
• Perform the “AFTER REPAIR PROCEDURE”.
• Are any DTCs present?
|
Yes
|
Go to the applicable DTC inspection.
(See DTC TABLE [MZR 1.3, MZR 1.5].)
|
No
|
DTC troubleshooting completed.
|
