FOREWORD [MZR 1.3, MZR 1.5]

id0102f8800300

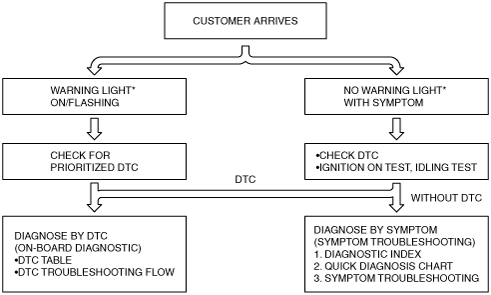

• When the customer reports a vehicle malfunction, check the malfunction indicator lamp (MIL) indication and diagnostic trouble code (DTC), then diagnose the malfunction according to the following flowchart.

― If a DTC exists, diagnose the applicable DTC inspection. (See DTC TABLE [MZR 1.3, MZR 1.5].)

― If a DTC does not exist and the MIL does not illuminate or flash, diagnose the applicable symptom troubleshooting. (See QUICK DIAGNOSTIC CHART [MZR 1.3, MZR 1.5].)

am2zzw00006003

* :Malfunction Indicator Lamp (MIL), Generator Warning Light, Security Light
