THERMOSTAT REMOVAL/INSTALLATION [MZR 1.3, MZR 1.5]
id0112c9801200
1. Disconnect the negative battery cable.
2. Drain the engine coolant. (See ENGINE COOLANT REPLACEMENT [MZR 1.3, MZR 1.5].)
3. Remove the drive belt. (See DRIVE BELT REMOVAL/INSTALLATION [MZR 1.3, MZR 1.5].)
4. Remove the A/C compressor with hose and pipe still connected. Position the A/C compressor out of the way. (See A/C COMPRESSOR REMOVAL/INSTALLATION [MZR 1.3, MZR 1.5].)

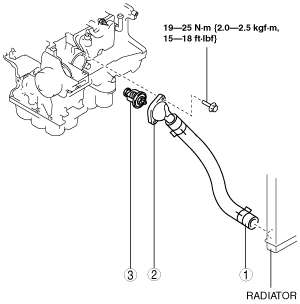

5. Remove in the order indicated in the table.
6. Install in the reverse order of removal.
7. Refill the engine coolant. (See ENGINE COOLANT REPLACEMENT [MZR 1.3, MZR 1.5].)
8. Inspect for engine coolant leakage. (See ENGINE COOLANT LEAKAGE INSPECTION [MZR 1.3, MZR 1.5].)
am2zzw00001700
|
1
|
Lower radiator hose (radiator side)
|
2
|
Thermostat cover
|
3
|
Thermostat
(See Thermostat Installation Note.)
|
Thermostat Installation Note
1. Install the thermostat with the jiggle-pin at the top.
am2zzw00001701
|
