INTAKE-AIR SYSTEM REMOVAL/INSTALLATION [MZ-CD 1.6]

id011319801900

Warning

• A hot engine and intake air system can cause severe burns. Turn off the engine and wait until they are cool before removing the intake air system.

Note

• If the intake shutter valve is replaced, complete the “INTAKE AIR THROTTLE VALVE LEARNED VALUES RESET”. (See INTAKE AIR THROTTLE VALVE LEARNED VALUES RESET [MZ-CD 1.6].)

• If the MAF/IAT sensor is replaced, complete the “MASS AIR FLOW SENSOR LEARNED VALUES RESET”. (See MASS AIR FLOW SENSOR LEARNED VALUES RESET [MZ-CD 1.6].)

1. Disconnect the negative battery cable. (See BATTERY REMOVAL/INSTALLATION [MZ-CD 1.6].)

2. Remove the engine cover. (See ENGINE COVER REMOVAL/INSTALLATION [MZ-CD 1.6].)

3. Disconnect the wiring harness.

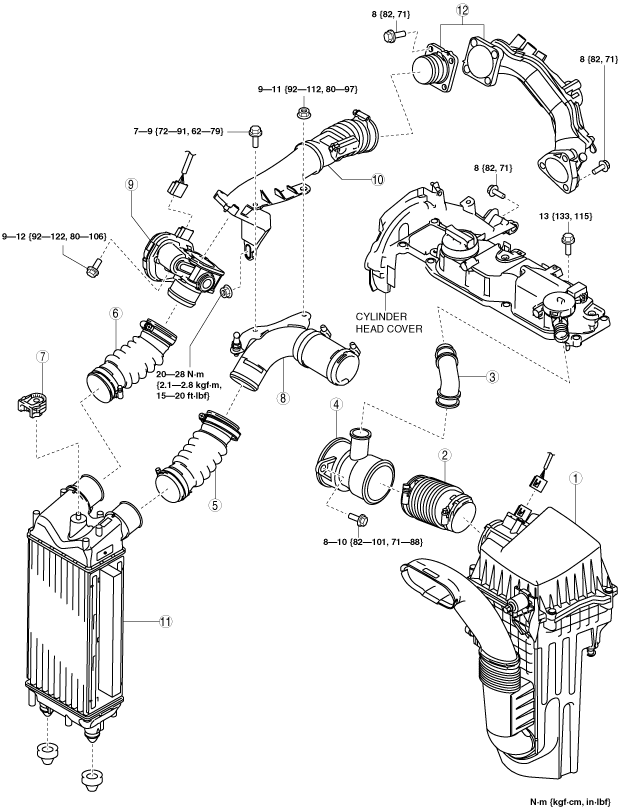

4. Remove in the order indicated in the table.

5. Install in the reverse order of removal.

am2zzw00006293

1

Air cleaner component

2

Air hose No.1

3

Ventilation hose

4

Air hose No.2

5

Charge air cooler inlet hose

(See Charge air cooler inlet hose Installation Note.)

6

Charge air cooler outlet hose

(See Charge air cooler outlet hose Installation Note.)

7

Charge air cooler bracket

8

Intake air pipe No.1

9

Intake shutter valve

10

Intake air pipe No.2

11

Charge air cooler

12

Intake air pipe No.3

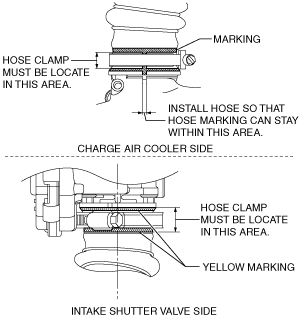

Charge air cooler outlet hose Installation Note

1. Install the charge air cooler outlet hose as shown in the figure.

am2zzw00006394

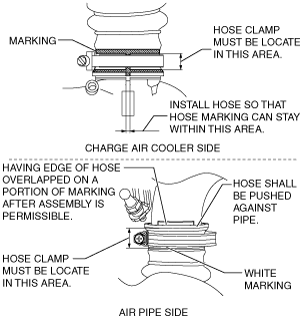

Charge air cooler inlet hose Installation Note

1. Install the charge air cooler inlet hose as shown in the figure.

am2zzw00006395

1	Air cleaner component
2	Air hose No.1
3	Ventilation hose
4	Air hose No.2
5	Charge air cooler inlet hose (See Charge air cooler inlet hose Installation Note.)
6	Charge air cooler outlet hose (See Charge air cooler outlet hose Installation Note.)
7	Charge air cooler bracket
8	Intake air pipe No.1
9	Intake shutter valve
10	Intake air pipe No.2
11	Charge air cooler
12	Intake air pipe No.3
