EXHAUST SYSTEM REMOVAL/INSTALLATION [MZ-CD 1.6]

• If the catalytic converter is replaced, complete the “DIESEL PARTICULATE FILTER LEARNED VALUES RESET” and “DIESEL PARTICULATE FILTER STATIC REGENERATION”. (See DIESEL PARTICULATE FILTER LEARNED VALUES RESET [MZ-CD 1.6].) (See DIESEL PARTICULATE FILTER STATIC REGENERATION [MZ-CD 1.6].)

• If the exhaust gas temperature sensor is replaced, complete the “EXHAUST GAS TEMPERATURE VALUE RESET”. (See EXHAUST GAS TEMPERATURE VALUE RESET [MZ-CD 1.6].)

• If the A/F sensor is replaced, complete the “HEATED EXHAUST GAS OXYGEN SENSOR LEARNED VALUES RESET”. (See HEATED EXHAUST GAS OXYGEN SENSOR LEARNED VALUES RESET [MZ-CD 1.6].)

• If the turbocharger is replaced, complete the “TURBOCHARGER LEARNED VALUES RESET”. (See TURBOCHARGER LEARNED VALUES RESET [MZ-CD 1.6].)

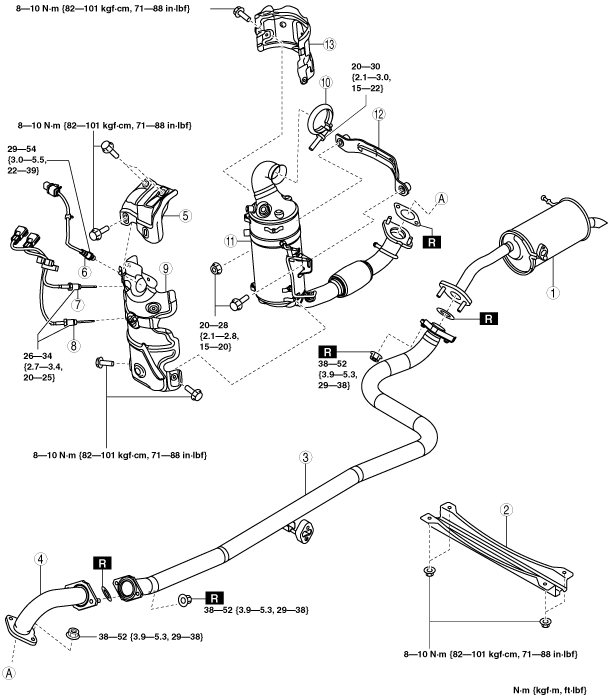

1	Main silencer
2	Tunnel member
3	Middle pipe
4	Front pipe
5	Catalytic converter front insulator (upper)
6	A/F sensor
7	Exhaust gas temperature sensor No.1
8	Exhaust gas temperature sensor No.2
9	Catalytic converter front insulator (lower)
10	Band
11	Catalytic converter
12	Catalytic converter bracket
13	Catalytic converter rear insulator

1	Exhaust manifold insulator No.1
2	Oil inlet pipe
3	Oil outlet pipe
4	Turbocharger
5	Exhaust manifold insulator No.2
6	Exhaust manifold
