BATTERY REMOVAL/INSTALLATION [MZR 1.3, MZR 1.5]
id0117d7800500

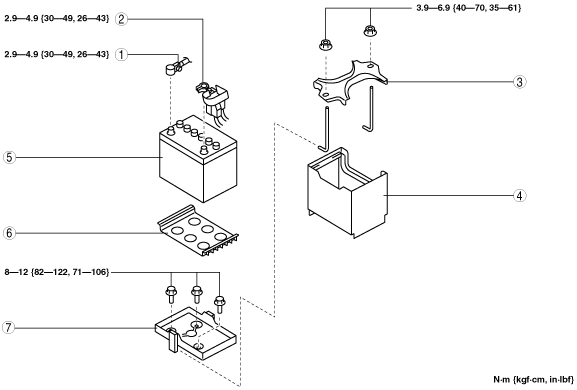

1. Remove in the order indicated in the table.
2. Install in the reverse order of removal.
am2uuw00000535
|
|
1
|
Negative battery cable
|
|
2
|
Positive battery cable
|
|
3
|
Battery clamp
|
|
4
|
Battery box
|
|
5
|
Battery
|
|
6
|
Battery stopper (if equipped)
|
|
7
|
Battery tray
|
Battery Box Installation Note
1. Install the battery box so that the side with the larger notch points toward the front fender (LH).
am2zzw00004353
|
