CAMSHAFT POSITION (CMP) SENSOR REMOVAL/INSTALLATION [MZ-CD 1.6]

id0140e7801500

1. Disconnect the negative battery cable. (See BATTERY REMOVAL/INSTALLATION [MZ-CD 1.6].)

2. Remove the engine cover. (See ENGINE COVER REMOVAL/INSTALLATION [MZ-CD 1.6].)

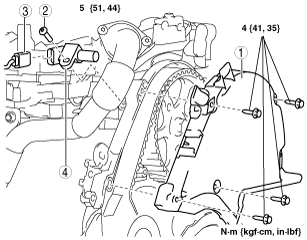

3. Remove in the order indicated in the table.

am2zzw00006325

1

Engine timing belt upper cover

2

Bolt

3

CMP sensor connector

4

CMP sensor

(See Camshaft Position (CMP) Sensor Installation Note.)

4. Install in the reverse order of removal.

Camshaft Position (CMP) Sensor Installation Note

Caution

• The CMP sensor tip must rest on one of the three webs on the back of the camshaft pulley. Incorrect installation may result in the CMP sensor being damaged.

Note

• Turn the engine in the normal direction of rotation only.

1. Turn the engine until one of the three webs on the back of the camshaft pulley is in line with the CMP sensor hole in the engine timing belt back plate.

am2zzw00006326

2. Install the CMP sensor until the tip of the sensor touches the back of the camshaft pulley.

1	Engine timing belt upper cover
2	Bolt
3	CMP sensor connector
4	CMP sensor (See Camshaft Position (CMP) Sensor Installation Note.)
