PCM REMOVAL/INSTALLATION [MZ-CD 1.6]

id0140e7802400

1.  Disconnect the negative battery cable. (See BATTERY REMOVAL/INSTALLATION [MZ-CD 1.6].)

2.  Remove the battery. (See BATTERY REMOVAL/INSTALLATION [MZ-CD 1.6].)

3.  Remove in the order indicated in the table.

4.  Install in the reverse order of removal.

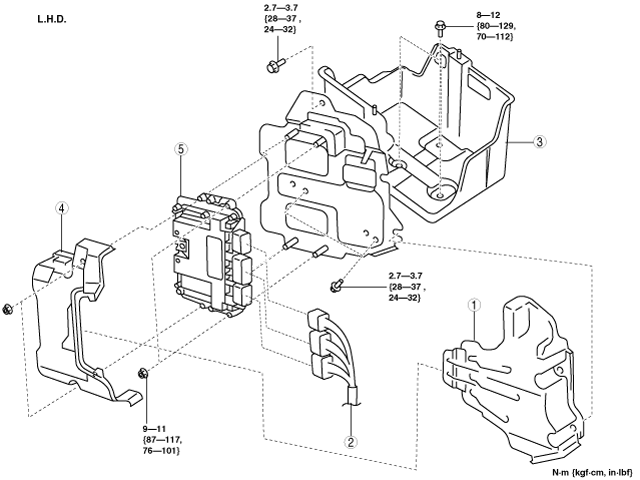

am2zzw00006466

1	PCM upper cover
2	PCM connector (See PCM Connector Removal Note.) (See PCM Connector Connection Note.)
3	Battery tray assembly
4	PCM lower cover
5	PCM

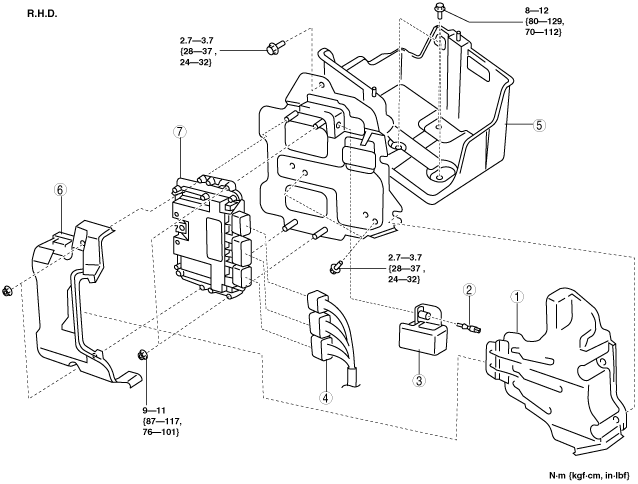

am2zzw00006467

1	PCM upper cover
2	Set bolt (See Set Bolt Removal Note.) (See Set Bolt Installation Note.)
3	PCM connector cover
4	PCM connector (See PCM Connector Removal Note.) (See PCM Connector Connection Note.)
5	Battery tray assembly
6	PCM lower cover
7	PCM

Set Bolt Removal Note

1.  Using a chisel and a hammer, cut a groove on the head of the set nut/bolt so that a screwdriver can be inserted.

2.  Loose the set nut/bolt using an impact screwdriver or pliers.

am6zzw00001169

PCM Connector Removal Note

1.  Detach the PCM electrical connectors in the sequence shown.

am2zzw00004108

PCM Connector Connection Note

Caution

•  If the PCM connector is inserted at an angle and the lever is moved, the connector could be damaged. Verify that the PCM connector is inserted straight.

acxaaw00000768

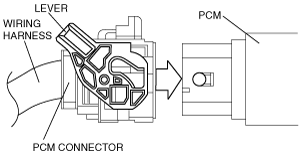

1.  Verify that the PCM connector lever is tilted towards the wiring harness side as shown in the figure.

am2zzw00006329

2.  Insert the PCM connector straight until it contacts the PCM and verify that the lever reverts upward naturally.

3.  Push the lever until a click is heard.

acxaaw00000767

Set Bolt Installation Note

1.  Install a new set nut/bolt and tighten it until the neck of the nut/bolt is cut.

am6zzw00001170
