FRONT SHOCK ABSORBER AND COIL SPRING REMOVAL/INSTALLATION
id021300121700

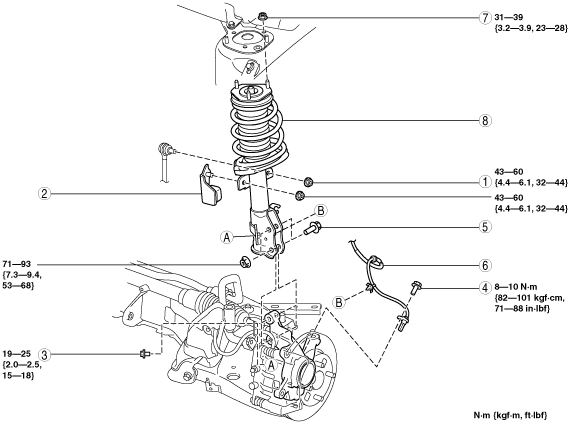

1. Remove in the order indicated in the table.
2. Install in the reverse order of removal.
3. Inspect the wheel alignment and adjust it if necessary. (See FRONT WHEEL ALIGNMENT.)
am2zzw00003559
|
|
1
|
Nut (stabilizer control link upper end)
|
|
2
|
Dynamic damper (if equipped)
|
|
3
|
Bolt (brake hose bracket)
|
|
4
|
Bolt (ABS wheel-speed sensor)
|
|
5
|
Bolt (lower end of shock absorber)
|
|
6
|
ABS wheel-speed sensor
|
|
7
|
Nut (upper end of shock absorber)
|
|
8
|
Shock absorber and coil spring
|
Bolt (ABS Wheel-Speed Sensor) Removal Note
1. Remove the ABS wheel-speed sensor installation bolt, then remove the ABS wheel-speed sensor from the steering knuckle.
ABS Wheel-Speed Sensor Removal Note
1. Disconnect the steering knuckle from the shock absorber.
2. While pressing the tabs (2 locations) of the ABS wheel-speed wiring harness sensor clip, remove the ABS wheel-speed sensor wiring harness from the shock absorber.
am2zzw00003560
|
3. Remove the ABS wheel-speed sensor wiring harness grommet from the shock absorber.
4. Move the ABS wheel-speed sensor to a place out of the way.
ABS Wheel-Speed Sensor, Bolt (Lower End Of Shock Absorber), Bolt (ABS Wheel-Speed Sensor) Installation Note
1. Install the steering knuckle to the shock absorber, insert the bolts from the direction shown as follows, then tighten them to the specified torque.
2. Install the ABS wheel-speed sensor wiring harness grommet to the shock absorber as shown in the figure.
am2zzw00003561
|
3. Install the ABS wheel-speed sensor wiring harness clip to the shock absorber.
4. Install the ABS wheel-speed sensor to the steering knuckle, then tighten the bolt (ABS wheel-speed sensor) to the specified torque.
5. Verify that the ABS wheel-speed sensor wiring harness is not twisted.
