REAR COIL SPRING REMOVAL/INSTALLATION

id021400800700

1.  Remove in the order indicated in the table.

2.  Install in the reverse order of removal.

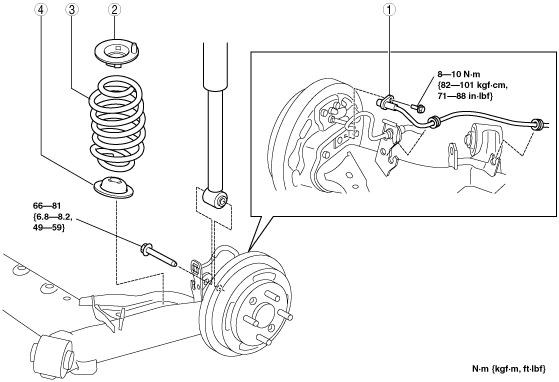

am2zzw00002117

1	ABS wheel-speed sensor
2	Upper spring seat (See Upper Spring Seat, Rear Coil Spring Removal Note.) (See Upper Spring Seat Installation Note.)
3	Rear coil spring (See Upper Spring Seat, Rear Coil Spring Removal Note.)
4	Lower spring seat (See Lower Spring Seat Installation Note.)

Upper Spring Seat, Rear Coil Spring Removal Note

Note

•  Even when either left or right coil spring is replaced, remove both rear shock absorber lower bolts so that the rear side of the torsion beam axle can be lowered in order to assure a space for the coil spring removal.

1.  Support the torsion beam axle using a jack.

am2zzw00001863

2.  Remove the bolt (rear shock absorber lower side).

3.  Lower the jack slowly, remove the upper spring seat and rear coil spring.

Lower Spring Seat Installation Note

1.  Install the lower spring seat so that the arrow is facing to the front of the vehicle.

am2zzw00001864

Upper Spring Seat Installation Note

1.  Install the coil spring with the end of the coil spring seated on the step of the upper spring seat.
