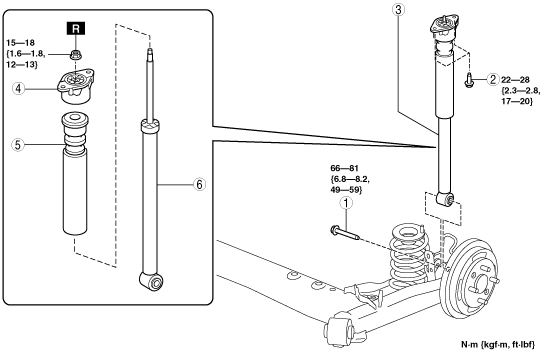

REAR SHOCK ABSORBER REMOVAL/INSTALLATION

id021400801300

1. Remove in the order indicated in the table.

2. Install in the reverse order of removal.

am2uuw00001150

1

Rear shock absorber component under bolt

2

Rear shock absorber component upper bolt

3

Rear shock absorber component

4

Mounting rubber

5

Bound stopper component

6

Rear shock absorber

1	Rear shock absorber component under bolt
2	Rear shock absorber component upper bolt
3	Rear shock absorber component
4	Mounting rubber
5	Bound stopper component
6	Rear shock absorber
