WHEEL HUB, STEERING KNUCKLE REMOVAL/INSTALLATION

id031100800400

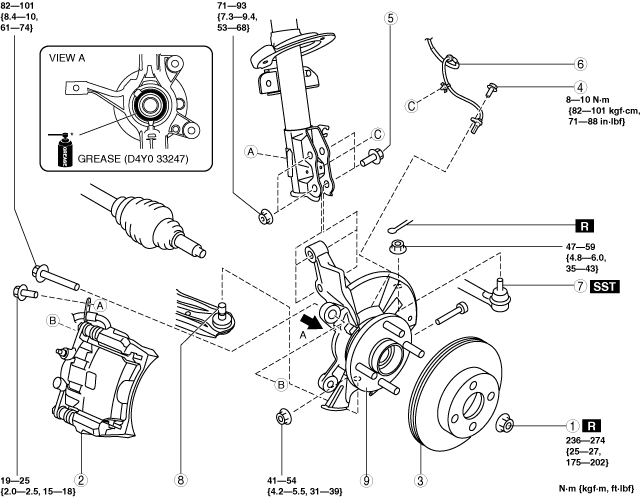

1. Remove in the order indicated in the table.

2. Install in the reverse order of removal

3. After installation, inspect the front wheel alignment. (See FRONT WHEEL ALIGNMENT.)

am2zzw00006164

Brake Caliper Component Removal Note

1. Remove the brake hose installation bolt and brake caliper installation bolts.

2. Remove the brake caliper component, and suspend it using wire.

Bolt (ABS Wheel-Speed Sensor) Removal Note

1. Remove the ABS wheel-speed sensor installation bolt, then remove the ABS wheel-speed sensor from the steering knuckle.

ABS Wheel-Speed Sensor Removal Note

1. Disconnect the steering knuckle from the shock absorber.

2. While pressing the tabs (2 locations) of the ABS wheel-speed sensor wiring harness clip, remove the ABS wheel-speed sensor wiring harness from the shock absorber.

am2zzw00006165

3. Remove the ABS wheel-speed sensor wiring harness grommet from the shock absorber.

4. Move the ABS wheel-speed sensor to a place out of the way.

Wheel Hub, Steering Knuckle Component Installation Note

1. Apply grease (D4Y0 33247) to the wheel bearing inner race and drive shaft contact surface (Area A in figure).

adejjw00005000

2. Install the wheel hub, steering knuckle component.

ABS Wheel-Speed Sensor, Bolt (Lower End Of Shock Absorber), Bolt (ABS Wheel-Speed Sensor) Installation Note

1. Install the steering knuckle to the shock absorber, insert the bolts from the direction shown as follows, then tighten them to the specified torque.

― Vehicle left side: Insert the bolts from the vehicle rear.

― Vehicle right side: Insert the bolts from the vehicle front.

2. Install the ABS wheel-speed sensor wiring harness grommet to the shock absorber as shown in the figure.

am2zzw00003537

3. Install the ABS wheel-speed sensor wiring harness clip to the shock absorber.

4. Install the ABS wheel-speed sensor to the steering knuckle, then tighten the bolt (ABS wheel-speed sensor) to the specified torque.

5. Verify that the ABS wheel-speed sensor wiring harness is not twisted.

1	Locknut
2	Brake caliper component (See Brake Caliper Component Removal Note.)
3	Disc plate (See FRONT BRAKE (DISC) REMOVAL/INSTALLATION.)
4	Bolt (ABS wheel-speed sensor) (See Bolt (ABS Wheel-Speed Sensor) Removal Note.) (See ABS Wheel-Speed Sensor, Bolt (Lower End Of Shock Absorber), Bolt (ABS Wheel-Speed Sensor) Installation Note.)
5	Bolt (lower end of shock absorber) (See ABS Wheel-Speed Sensor, Bolt (Lower End Of Shock Absorber), Bolt (ABS Wheel-Speed Sensor) Installation Note.)
6	ABS wheel-speed sensor (See ABS Wheel-Speed Sensor Removal Note.) (See ABS Wheel-Speed Sensor, Bolt (Lower End Of Shock Absorber), Bolt (ABS Wheel-Speed Sensor) Installation Note.)
7	Tie-rod end (See FRONT CROSSMEMBER REMOVAL/INSTALLATION.)
8	Front lower arm ball joint
9	Wheel hub, steering knuckle component (See Wheel Hub, Steering Knuckle Component Installation Note.)
