JOINT SHAFT REMOVAL/INSTALLATION [MZ-CD 1.6]

id0313008009k4

1.  Remove in the order indicated in the table.

2.  Install in the reverse order of removal.

3.  Add the transaxle oil. (See TRANSAXLE OIL INSPECTION [B65M-R].)

am2zzw00003562

1	Nut (stabilizer control link upper side)
2	Bolt (brake hose bracket)
3	Tie-rod end ball joint (See FRONT CROSSMEMBER REMOVAL/INSTALLATION.)
4	ABS wheel-speed sensor (See ABS Wheel-Speed Sensor Removal Note.) (See ABS Wheel-Speed Sensor Installation Note.)
5	Front lower arm ball joint
6	Bracket (See Bracket Installation Note.)
7	Joint shaft (See Joint Shaft Removal Note.)
8	Bracket
9	Clip (See Clip Installation Note.)

ABS Wheel-Speed Sensor Removal Note

1.  Remove the ABS wheel-speed sensor installation bolt, then remove the ABS wheel-speed sensor from the steering knuckle.

2.  Remove the bolts and nuts shown in the figure, then disconnect the steering knuckle from the shock absorber.

am2zzw00003567

3.  While pressing the tabs (2 locations) of the ABS wheel-speed sensor wiring harness clip, remove the ABS wheel-speed sensor wiring harness from the shock absorber.

am2zzw00003568

4.  Remove the ABS wheel-speed sensor wiring harness grommet from the shock absorber.

5.  Move the ABS wheel-speed sensor to a place out of the way.

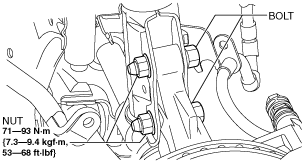

6.  Install the steering knuckle to the shock absorber, insert the bolts from the direction shown as follows, then tighten them to the specified torque.

am2zzw00006280

―  Vehicle left side: Insert the bolts from the vehicle rear.

―  Vehicle right side: Insert the bolts from the vehicle front.

Joint Shaft Removal Note

1.  Disconnect the drive shaft (RH) from the joint shaft by tapping the transaxle side outer ring with a brass bar and hammer.

am2zzw00003563

2.  Remove the joint shaft.

Caution

•  The sharp edges of the joint shaft can slice or puncture the oil seal. Be careful when removing the joint shaft from the transaxle.

Clip Installation Note

1.  Install a new joint shaft clip to the clip groove at the end of the joint shaft with the clip opening facing upward and the clip width within the specification.

2.  After installation, measure the outer diameter.

•  If it exceeds the specification, repeat installation using a new clip.

am2zzw00003565

Bracket Installation Note

1.  Temporarily tighten the nuts.

2.  Tighten the nuts completely.

ABS Wheel-Speed Sensor Installation Note

1.  Install the ABS wheel-speed sensor wiring harness grommet to the shock absorber as shown in the figure.

am2zzw00003570

2.  Install the ABS wheel-speed sensor wiring harness clip to the shock absorber.

3.  Install the ABS wheel-speed sensor to the steering knuckle, then tighten the bolt (ABS wheel-speed sensor) to the specified torque.

4.  Verify that the ABS wheel-speed sensor wiring harness is not twisted.
