SYMPTOM TROUBLESHOOTING [ABS]

id0403a5804200

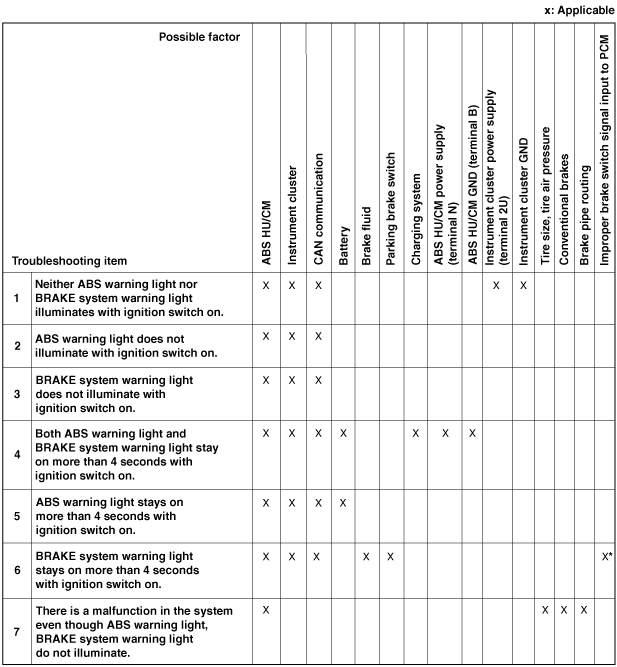

•  Verify the symptoms, and perform troubleshooting according to the appropriate number.

No.

Symptom
1
Neither ABS warning light nor BRAKE system warning light illuminate with ignition switch on.
2
ABS warning light does not illuminate with ignition switch on.
3
BRAKE system warning light does not illuminate with ignition switch on.
4
Both ABS warning light and BRAKE system warning light stay on more than 4 seconds with ignition switch on.
5
ABS warning light stays on more than 4 seconds with ignition switch on.
6
BRAKE system warning light stays on more than 4 seconds with ignition switch on. (Parking brake is released.)
7
There is a malfunction in the system even through ABS warning light, BRAKE system warning light, do not illuminate.

am2zzw00006719
*  :MZR 1.3, MZR 1.5 without malfunction warning light
