DISC PAD (FRONT) REPLACEMENT
id041100190900
1. Remove in the order indicated in the table.
2. Install in the reverse order of removal.
3. After installation, pump the brake pedal a few times and verify that the brakes do not drag.

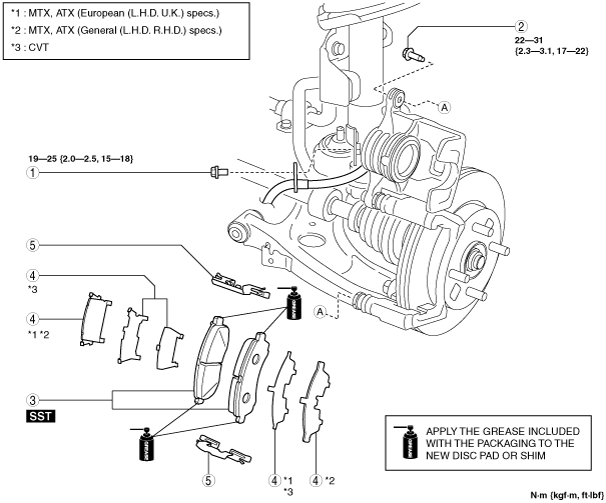

am2zzw00005354
|
|
1
|
Bolt
|
|
2
|
Bolt
|
|
3
|
Disc pad
(See Disc Pad Installation Note.)
|
|
4
|
Shim
|
|
5
|
Guide plate
|
Disc Pad Installation Note
1. Thoroughly clean the exposed area of the piston.
2. Set up the disc pads and the SST.
am2zzw00004131
|
3. Press fit the piston using the SST.
4. Apply the grease included with the packaging for a new disc pad or shim to the areas in which the guide plate of the disc pad comes into contact.
5. Install the disc pads to the mounting support.
