VACUUM HOSE REMOVAL/INSTALLATION [MZR 1.3, MZR 1.5]
id0411008016n9
1. Remove in the order indicated in the table.
2. Install in the reverse order of removal.

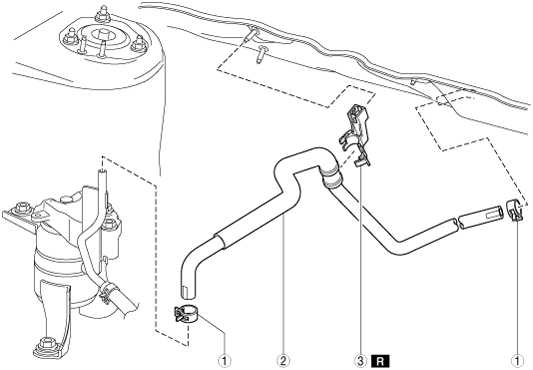

L.H.D.
am2zzw00005348
|
|
1
|
Hose clamp
|
|
2
|
Vacuum hose
|
|
3
|
Vacuum hose clip
|

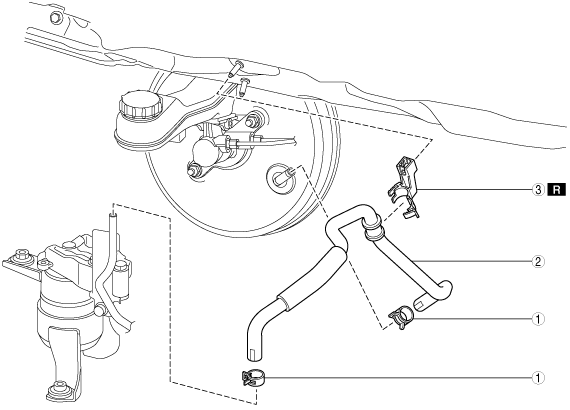

R.H.D.
am2zzw00005349
|
|
1
|
Hose clamp
|
|
2
|
Vacuum hose
|
|
3
|
Vacuum hose clip
|
Vacuum Hose Installation Note
1. Install the vacuum hose to the vacuum hose clip as shown in the figure.
am2zzw00003132
|
