CLUTCH PEDAL REMOVAL/INSTALLATION [B65M-R]


id0510h3801200

Caution
•  Fluid will damage painted surfaces. Be careful not to spill any on painted surfaces. If it is spilled, wipe it off immediately.
•  If clutch system-related hydraulic parts are removed, supply brake fluid, bleed air, and inspect for fluid leakage after the installation.

1.  Disconnect the negative battery cable. (See BATTERY REMOVAL/INSTALLATION [MZ-CD 1.6].)

2.  Remove the battery clamp and battery box and battery. (L.H.D.) (See BATTERY REMOVAL/INSTALLATION [MZ-CD 1.6].)

3.  Remove in the order indicated in the table.

4.  Plug the clutch pipe after removing it to avoid leakage.

5.  Install in the reverse order of removal.

L.H.D.

am2zzw00005697

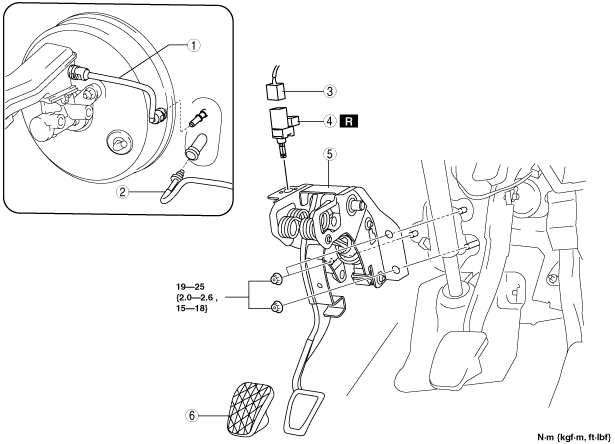

R.H.D.

am2zzw00005643

1
Reserve hose
2
Clutch pipe
3
Clutch pedal position switch connector
4
Clutch pedal position switch
5
Clutch pedal component
6
Pedal pad


Reserve Hose Removal Note

1.  Move the clip upward.

am2zzw00005644

2.  Disconnect the reserve hose.


Clutch Pipe Removal Note


L.H.D.

Caution
•  When disconnecting the clutch pipe, the seal ring installed to the end of the clutch pipe may fall off or remain on the clutch pedal component clutch master cylinder side. If the clutch pipe is assembled with the seal ring not installed, it may cause fluid leakage from the clutch pipe connector or the clutch may not operate normally. When disconnecting the clutch pipe, remove the seal ring and clutch pipe as a single unit.

1.  Pull the clutch master cylinder clip to the position shown in the figure and pull out the clutch pipe connector straight to detach it.

am2zzw00004074

2.  Verify that the seal ring is removed together with the clutch pipe.

am2zzw00003992


R.H.D.

Caution
•  When disconnecting the clutch pipe, the seal ring installed to the end of the clutch pipe connector may fall off or remain on the clutch pedal component clutch master cylinder side. If the clutch pipe is assembled with the seal ring not installed, it may cause fluid leakage from the clutch pipe connector or the clutch may not operate normally. When disconnecting the clutch pipe, remove the seal ring and clutch pipe connector as a single unit.

1.  Pull the clutch master cylinder clip to the position shown in the figure and pull out the clutch pipe connector straight to detach it.

am2zzw00004074

2.  Verify that the seal ring is removed together with the clutch pipe connector.

am2zzw00003990


Clutch Pedal Component Installation Note

1.  Add the clutch fluid, bleed the air, and inspect for leakage after the installation. (See CLUTCH FLUID AIR BLEEDING/REPLACEMENT [B65M-R].)

2.  After installing the clutch pedal, inspect the clutch pedal. (See CLUTCH PEDAL INSPECTION [B65M-R].)


Clutch Pedal Position Switch Installation Note

1.  Insert the new clutch pedal position switch into hole of the pedal bracket until the switch stops.

2.  Rotate the clutch pedal position switch 45° clockwise.

am2zzw00004075

3.  Verify that the clutch pedal position switch is locked securely.


Clutch Pipe Installation Note


L.H.D.

1.  Verify that the seal ring is installed to the groove at the end of the clutch pipe.

am2zzw00003989

Caution
•  Verify that there is no chipping or damage to the seal ring of the clutch pipe.

2.  Return the clutch master cylinder clip to the position shown in the figure.

am2zzw00004076

3.  Insert the clutch pipe connector straight.

4.  Pull the clutch pipe to verify that it does not come off, and reinsert it completely.


R.H.D.

1.  Verify that the seal ring is assembled to the clutch pipe so that the ends of the seal ring and the clutch pipe overlap each other.

am2zzw00003968

Caution
•  Verify that there is no chipping or damage to the seal ring of the clutch pipe connector.

2.  Return the clutch master cylinder clip to the position shown in the figure.

am2zzw00004076

3.  Insert the clutch pipe connector straight.

4.  Pull the clutch pipe to verify that it does not come off, and reinsert it completely.


Reserve Hose Installation Note

1.  Connect the reserve hose until a click is heard.

am2zzw00005645

2.  Verify that the reserve hose is securely installed by pulling it, and reinsert into the reserve tank.
