CLUTCH RELEASE CYLINDER REMOVAL/INSTALLATION [B65M-R]

id0510h3801300

1.  Remove the manual transaxle. (See MANUAL TRANSAXLE REMOVAL/INSTALLATION [B65M-R].)

2.  Wipe off grease from the input shaft.

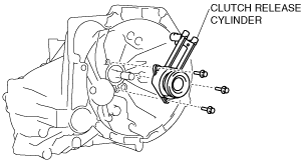

3.  Remove the clutch release cylinder.

am2zzw00002895

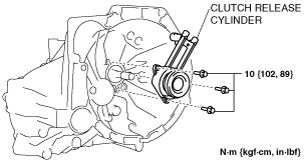

4.  Install the clutch release cylinder.

am2zzw00004158

5.  Apply grease to the input shaft.

Grease grade
ESD-M1C220-A

6.  Install the manual transaxle. (See MANUAL TRANSAXLE REMOVAL/INSTALLATION [B65M-R].)
