TRANSAXLE OIL INSPECTION [F35M-R]

id0515a1800000

1. Park the vehicle on level ground.

2. Stop the engine and allow approx. 3 min before continuing.

3. Remove the hole cover.

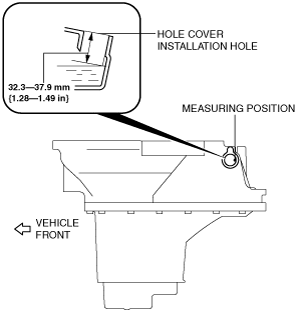

4. Verify that the oil level is as shown in the figure.

am2zzw00000180

• If the oil level is lower than the low level, add the specified amount and type of oil through the hole cover installation hole.

Manual transaxle oil grade

API service GL-4

Manual transaxle oil viscosity

SAE 75W-80

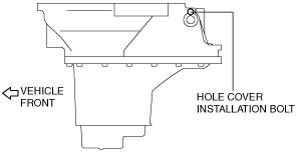

5. Install the hole cover.

am2zzw00000181

Tightening torque

8—11 N·m {82—112 kgf·cm, 71—97 in·lbf}
