TRANSAXLE OIL REPLACEMENT [F35M-R]

id0515a1800100

1. Park the vehicle on level ground.

2. Remove the hole cover.

3. Remove the drain plug with the washer.

4. Drain the oil into a suitable container.

5. Install a new gasket and the drain plug.

Tightening torque

39—59 N·m {4.0—6.0 kgf·m, 29—43 ft·lbf}

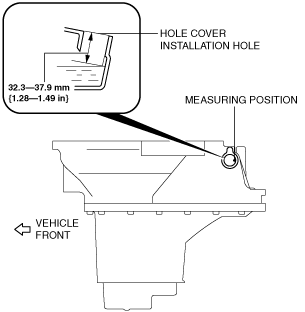

6. Add the specified amount and type of oil through the hole cover installation hole until the level reaches as shown in the figure.

am2zzw00000182

Manual transaxle oil grade

API service GL-4

Manual transaxle oil viscosity

SAE 75W-80

Manual transaxle oil capacity (approx. quantity)

2.91 L {3.07 US qt, 2.56 Imp qt}

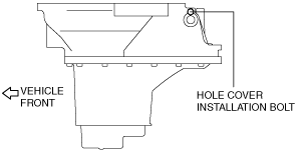

7. Install the hole cover.

am2zzw00001940

Tightening torque

8—11 N·m {82—112 kgf·cm, 71—97 in·lbf}
