DRIVE PLATE REMOVAL/INSTALLATION [FN4A-EL]

id051701802500

2. Remove the drive plate.

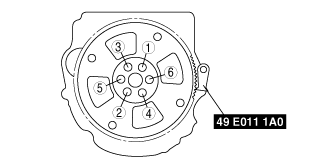

(1) Set the SST or equivalent against the drive plate.

am2zzw00000809

(2) Remove the drive plate mounting bolts in two or three steps in the order shown.

(3) Remove the adapter.

(4) Remove the drive plate from the engine.

3. Install the drive plate.

(1) Set the drive plate and adapter, then install the new drive plate mounting bolts.

(2) Set the SST or equivalent against the drive plate.

(3) Tighten the new drive plate mounting bolts in two or three steps in the order shown.

am2zzw00000810

Tightening torque

97—103 N·m

{9.9—10 kgf·m, 72—75 ft·lbf}
