AUTOMATIC TRANSAXLE SHIFT MECHANISM LOCATION INDEX

id051800269000

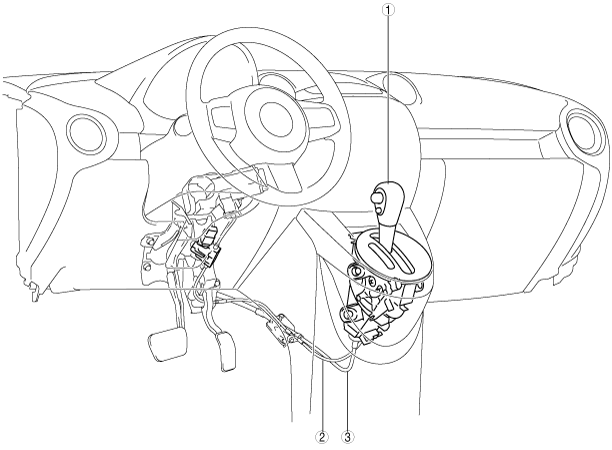

L.H.D.

am2zzw00001651

R.H.D.

adejjw00002244

1	Selector lever (See AUTOMATIC TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION.)
2	Interlock cable (See INTERLOCK CABLE INSPECTION.) (See AUTOMATIC TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION.)
3	Selector cable (See SELECTOR CABLE ADJUSTMENT.) (See AUTOMATIC TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION.)
