HEATER HOSE REMOVAL/INSTALLATION [MZR 1.3, MZR 1.5]
id0711008051j1
1. Disconnect the negative battery cable.
2. Drain the engine coolant. (See ENGINE COOLANT REPLACEMENT [MZR 1.3, MZR 1.5].)

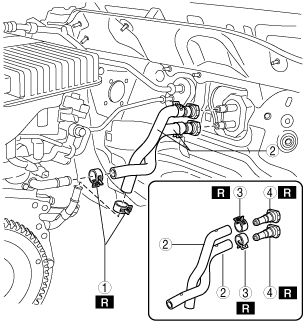

3. Remove in the order indicated in the table.
adejjw00003530
|
|
1
|
Clip
|
|
2
|
Heater hose
(See Heater Hose Removal Note.)
|
|
3
|
Clip
|
|
4
|
Quick connector
|
4. Install in the reverse order of removal.
Heater Hose Removal Note
1. While pressing the heater hose into the A/C unit side (1), pinch the quick connector retainer (2), then disconnect the heater hose from the A/C unit (3).
am2zzw00002009
|
Heater Hose Installation Note
1. Insert the heater hose into the pipe of the A/C unit until a click is heard.
2. While pressing the heater hose quick connector against the A/C unit side, press in the push tab.
adejjw00004440
|
3. Verify that the heater hose cannot be pulled out from the A/C unit by lightly pulling the heater hose.
