CABIN TEMPERATURE SENSOR INSPECTION [FULL-AUTO AIR CONDITIONER]

id0740a1807700

1.  Measure the temperature around the cabin temperature sensor.

2.  Measure the resistance between terminals of the cabin temperature sensor.

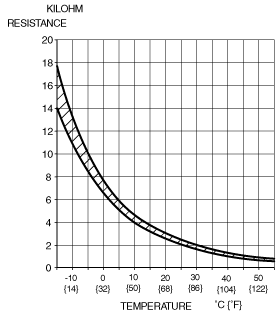

am2zzw00001079

•  If the resistance is not as shown in the graph, replace the cabin temperature sensor.

3.  Connect battery positive voltage to cabin temperature sensor terminal A and connect terminal C to ground to verify fan operation.

adejjw00004426

•  If there is any malfunction, replace the cabin temperature sensor.
