FAN SWITCH INSPECTION [MANUAL AIR CONDITIONER]


id0740a2801300

1.  Remove the climate control unit.

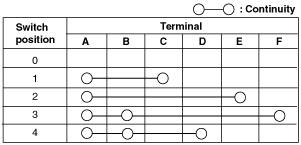

2.  Inspect for continuity between the fan switch terminals using an ohmmeter.

am2zzw00005530

•  If not as specified, replace the fan switch.
am2zzw00005531
