CLIMATE CONTROL UNIT DISASSEMBLY/ASSEMBLY [MANUAL AIR CONDITIONER]
id0740a2802000

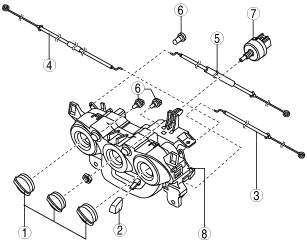

1. Disassemble in the order indicated in the figure.
L.H.D.
am2zzw00001119
|
|
1
|
Dial
|
|
2
|
Knob
|
|
3
|
Air intake wire
(See Wire Removal Note.)
(See Wire Installation Note.)
|
|
4
|
Airflow mode wire
(See Wire Removal Note.)
(See Wire Installation Note.)
|
|
5
|
Air mix wire
(See Wire Removal Note.)
(See Wire Installation Note.)
|
|
6
|
Bulb
|
|
7
|
Fan switch
|
|
8
|
Climate control unit
|
R.H.D.
adejjw00001409
|
|
1
|
Dial
|
|
2
|
Knob
|
|
3
|
Airflow mode wire
(See Wire Removal Note.)
(See Wire Installation Note.)
|
|
4
|
Air mix wire
(See Wire Removal Note.)
(See Wire Installation Note.)
|
|
5
|
Air intake wire
(See Wire Removal Note.)
(See Wire Installation Note.)
|
|
6
|
Bulb
|
|
7
|
Fan switch
|
|
8
|
Climate control unit
|
2. Assemble in the reverse order of disassembly.

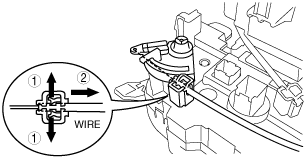

Wire Removal Note
1. Remove in the order indicated in the figure.
am2zzw00001120
|

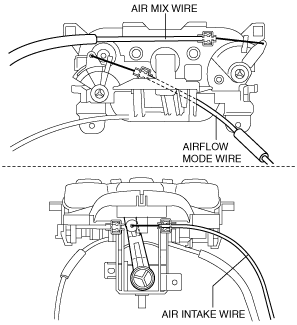

Wire Installation Note
1. Install as shown in the figure.
L.H.D.
am2zzw00001121
|

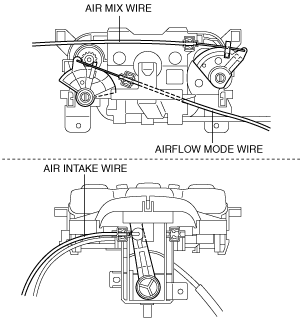

R.H.D.
am2zzw00002083
|
