REFRIGERANT PRESSURE SWITCH INSPECTION [MANUAL AIR CONDITIONER]

id0740a2802700

1.  Install the SST (manifold gauge).

2.  Disconnect the refrigerant pressure switch connector.

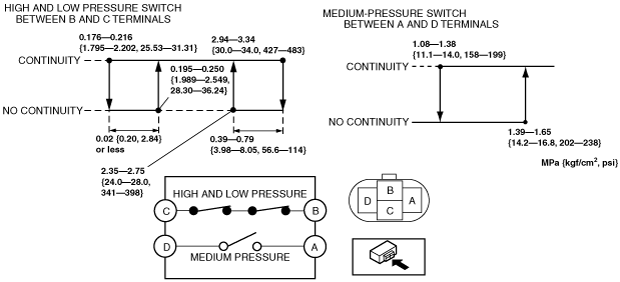

3.  Verify the high-pressure side reading of the manifold gauge and continuity between the terminals of the refrigerant pressure switch.

•  If the continuity is not normal, replace the refrigerant pressure switch.

am2zzw00002208
