CLOCK SPRING ADJUSTMENT

id081000802100

Note

•  The adjustment procedure is also specified on the caution label of the clock spring.

1.  Set the front tires straight-ahead.

Caution

•  The clock spring will break if over-wound. Do not forcibly turn the clock spring.

2.  Turn the clock spring clockwise until it stops.

am2zzw00000350

3.  From the stopped position, turn the clock spring counterclockwise 2 1/2 turns.

am2zzw00002011

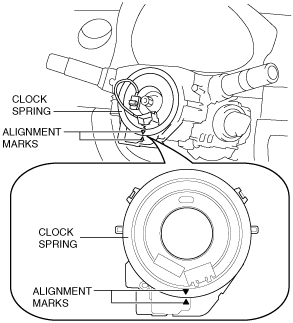

4.  Align the alignment marks.
