FRONT BUCKLE REMOVAL/INSTALLATION

id081100800400

European (L.H.D.) Specs.

Driver side

1.  Switch the ignition to off.

2.  Disconnect the negative battery cable.

3.  Remove the front seat. (See FRONT SEAT REMOVAL/INSTALLATION.)

4.  Disconnect the front buckle connector.

5.  Remove the front buckle connector clip from the front seat.

am2zzw00005607

6.  Remove the bands and clips in the positions shown in the figure.

am2zzw00001886

7.  Remove the bolt.

8.  Remove the front buckle.

9.  Install in the reverse order of removal.

Passenger side

1.  Switch the ignition to off.

2.  Disconnect the negative battery cable.

3.  Remove the front seat. (See FRONT SEAT REMOVAL/INSTALLATION.)

4.  Disconnect the front buckle connector.

am2zzw00001887

5.  Remove the clip in the position shown in the figure.

6.  Remove the bolt.

7.  Remove the front buckle.

8.  Install in the reverse order of removal.

U.K. Specs.

Driver side

1.  Switch the ignition to off.

2.  Disconnect the negative battery cable.

3.  Remove the front seat. (See FRONT SEAT REMOVAL/INSTALLATION.)

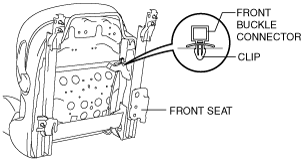

4.  Remove the front buckle connector clip from the front seat.

am2zzw00001932

5.  Remove the bands and clips in the positions shown in the figure.

am2zzw00001933

6.  Remove the bolt.

7.  Remove the front buckle.

8.  Install in the reverse order of removal.

Passenger side

1.  Switch the ignition to off.

2.  Disconnect the negative battery cable.

3.  Remove the front seat. (See FRONT SEAT REMOVAL/INSTALLATION.)

4.  Disconnect the front buckle connector.

am2zzw00001934

5.  Remove the clip in the position shown in the figure.

6.  Remove the bolt.

7.  Remove the front buckle.

8.  Install in the reverse order of removal.

General (L.H.D.) Specs.

Driver side

1.  Switch the ignition to off.

2.  Disconnect the negative battery cable.

3.  Remove the front seat. (See FRONT SEAT REMOVAL/INSTALLATION.)

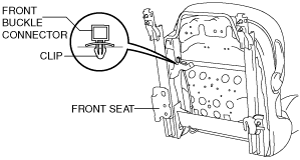

4.  Remove the front buckle connector clip from the front seat.

am2zzw00000448

5.  Remove the clip in the position shown in the figure.

am2zzw00002008

6.  Remove the bolt.

7.  Remove the front buckle.

8.  Install in the reverse order of removal.

Passenger side

1.  Remove the bolt.

am2zzw00001889

2.  Remove the front buckle.

3.  Install in the reverse order of removal.
