REAR BUCKLE REMOVAL/INSTALLATION

id081100800700

Except General (L.H.D.) Specs.

1.  Remove the rear seat cushion. (See REAR SEAT CUSHION REMOVAL/INSTALLATION.)

2.  Remove the bolts.

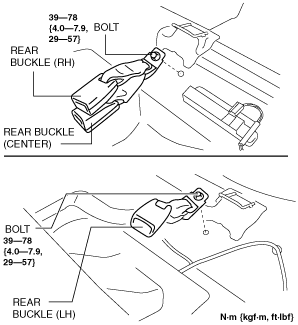

am2zzw00001936

3.  Remove the rear buckle (RH) and rear buckle (center).

4.  Remove the rear buckle (LH).

5.  Install in the reverse order of removal.

General (L.H.D.) Specs.

1.  Remove the rear seat cushion. (See REAR SEAT CUSHION REMOVAL/INSTALLATION.)

2.  Remove the bolts.

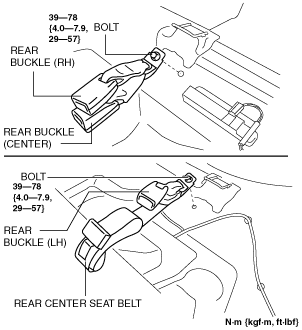

am2zzw00001937

3.  Remove the rear buckle (RH) and rear buckle (center).

4.  Remove the rear buckle (LH) and rear center seat belt.

5.  Install in the reverse order of removal.
