DTC B1176:13 [BCM]

id0902f5340800

Description

• Front door latch switch (passenger-side) circuit malfunction

Detection Condition

• Open circuit in wiring harness between front door latch switch (passenger-side) and BCM.

Possible Causes

• Front door latch and lock actuator (passenger-side) connector or terminals malfunction

• Open circuit in wiring harness between the following terminal and body ground:

― L.H.D.

• Front door latch and lock actuator (passenger-side) terminal D

― R.H.D.

• Front door latch and lock actuator (passenger-side) terminal J

• Front door latch switch (passenger-side) malfunction

• BCM connector or terminals malfunction

• Open circuit in wiring harness between the following terminals:

― L.H.D.

• Front door latch and lock actuator (passenger-side) terminal B and BCM terminal 7M

― R.H.D.

• Front door latch and lock actuator (passenger-side) terminal L and BCM terminal 7M

• BCM malfunction

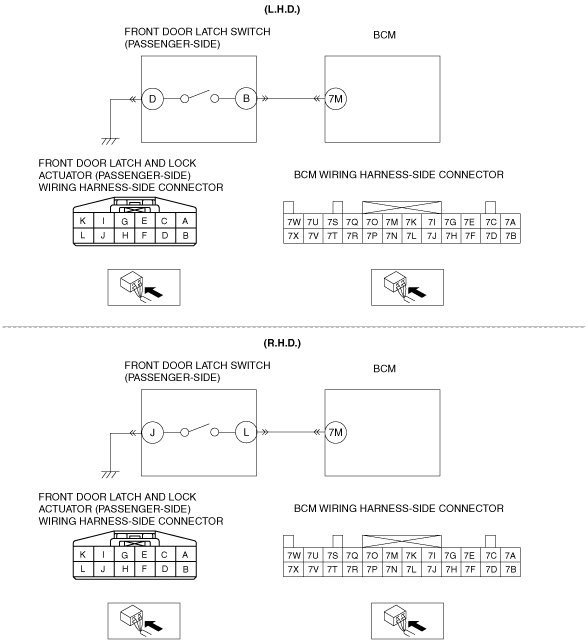

System Wiring Diagram

am2zzw00006127

Diagnostic Procedure

Step

Inspection

Action

1

VERIFY BCM DTCs

•  Clear the DTCs using the M-MDS.
(See CLEARING DTC [BCM].)

•  Perform the BCM DTC inspection using the M-MDS.
(See DTC INSPECTION [BCM].)

•  Is the same DTC present?

Yes

Go to the next step.

No

Go to Step 8.

2

INSPECT FRONT DOOR LATCH AND LOCK ACTUATOR (PASSENGER-SIDE) CONNECTOR AND TERMINALS

•  Turn the ignition switch to the LOCK position.

•  Disconnect the negative battery cable.

•  Disconnect the front door latch and lock actuator (passenger-side) connector.

•  Inspect the connector and terminals (corrosion, damage, pin disconnection).

•  Is there any malfunction?

Yes

Repair or replace the connector or terminals, then go to Step 7.

No

Go to the next step.

3

INSPECT FRONT DOOR LATCH SWITCH (PASSENGER-SIDE) GROUND CIRCUIT FOR OPEN CIRCUIT

•  Verify that the front door latch and lock actuator (passenger-side) connector is disconnected.

•  Inspect for continuity between the following terminal (wiring harness-side) and body ground:

―  L.H.D.

•  Front door latch and lock actuator (passenger-side) terminal D

―  R.H.D.

•  Front door latch and lock actuator (passenger-side) terminal J

•  Is there continuity?

Yes

Go to the next step.

No

Repair or replace the wiring harness for a possible open circuit, then go to Step 7.

4

INSPECT FRONT DOOR LATCH SWITCH (PASSENGER-SIDE)

•  Inspect the front door latch switch (passenger-side).
(See FRONT DOOR LATCH SWITCH INSPECTION.)

•  Is there any malfunction?

Yes

Replace the front door latch and lock actuator (passenger-side), then go to Step 7.

(See FRONT DOOR LATCH AND LOCK ACTUATOR REMOVAL/INSTALLATION.)

No

Go to the next step.

5

INSPECT BCM CONNECTOR AND TERMINALS

•  Disconnect the BCM connector.

•  Inspect the connector and terminals (corrosion, damage, pin disconnection).

•  Is there any malfunction?

Yes

Repair or replace the connector or terminals, then go to Step 7.

No

Go to the next step.

6

INSPECT FRONT DOOR LATCH SWITCH (PASSENGER-SIDE) CIRCUIT FOR OPEN CIRCUIT

•  Verify that the front door latch and lock actuator (passenger-side) and BCM connectors are disconnected.

•  Inspect for continuity between the following terminals (wiring harness-side):

―  L.H.D.

•  Front door latch and lock actuator (passenger-side) terminal B and BCM terminal 7M

―  R.H.D.

•  Front door latch and lock actuator (passenger-side) terminal L and BCM terminal 7M

•  Is there continuity?

Yes

Go to the next step.

No

Repair or replace the wiring harness for a possible open circuit, then go to the next step.

7

VERIFY TROUBLESHOOTING COMPLETED

•  Make sure to reconnect all disconnected connectors.

•  Reconnect the negative battery cable.

•  Clear the DTCs using the M-MDS.
(See CLEARING DTC [BCM].)

•  Perform the BCM DTC inspection using the M-MDS.
(See DTC INSPECTION [BCM].)

•  Is the same DTC present?

Yes

Repeat the inspection from Step 1.

•  If the malfunction recurs, replace the BCM.
(See BODY CONTROL MODULE (BCM) REMOVAL/INSTALLATION.)

Go to the next step.

No

Go to the next step.

8

VERIFY THAT NO OTHER DTCs ARE PRESENT

•  Are any DTCs present?

Yes

Go to the applicable DTC inspection.

(See DTC TABLE [BCM].)

No

DTC troubleshooting completed.

Step	Inspection		Action
1	VERIFY BCM DTCs • Clear the DTCs using the M-MDS. (See CLEARING DTC [BCM].) • Perform the BCM DTC inspection using the M-MDS. (See DTC INSPECTION [BCM].) • Is the same DTC present?	Yes	Go to the next step.
1		No	Go to Step 8.
2	INSPECT FRONT DOOR LATCH AND LOCK ACTUATOR (PASSENGER-SIDE) CONNECTOR AND TERMINALS • Turn the ignition switch to the LOCK position. • Disconnect the negative battery cable. • Disconnect the front door latch and lock actuator (passenger-side) connector. • Inspect the connector and terminals (corrosion, damage, pin disconnection). • Is there any malfunction?	Yes	Repair or replace the connector or terminals, then go to Step 7.
2		No	Go to the next step.
3	INSPECT FRONT DOOR LATCH SWITCH (PASSENGER-SIDE) GROUND CIRCUIT FOR OPEN CIRCUIT • Verify that the front door latch and lock actuator (passenger-side) connector is disconnected. • Inspect for continuity between the following terminal (wiring harness-side) and body ground: ― L.H.D. • Front door latch and lock actuator (passenger-side) terminal D ― R.H.D. • Front door latch and lock actuator (passenger-side) terminal J • Is there continuity?	Yes	Go to the next step.
3		No	Repair or replace the wiring harness for a possible open circuit, then go to Step 7.
4	INSPECT FRONT DOOR LATCH SWITCH (PASSENGER-SIDE) • Inspect the front door latch switch (passenger-side). (See FRONT DOOR LATCH SWITCH INSPECTION.) • Is there any malfunction?	Yes	Replace the front door latch and lock actuator (passenger-side), then go to Step 7. (See FRONT DOOR LATCH AND LOCK ACTUATOR REMOVAL/INSTALLATION.)
4		No	Go to the next step.
5	INSPECT BCM CONNECTOR AND TERMINALS • Disconnect the BCM connector. • Inspect the connector and terminals (corrosion, damage, pin disconnection). • Is there any malfunction?	Yes	Repair or replace the connector or terminals, then go to Step 7.
5		No	Go to the next step.
6	INSPECT FRONT DOOR LATCH SWITCH (PASSENGER-SIDE) CIRCUIT FOR OPEN CIRCUIT • Verify that the front door latch and lock actuator (passenger-side) and BCM connectors are disconnected. • Inspect for continuity between the following terminals (wiring harness-side): ― L.H.D. • Front door latch and lock actuator (passenger-side) terminal B and BCM terminal 7M ― R.H.D. • Front door latch and lock actuator (passenger-side) terminal L and BCM terminal 7M • Is there continuity?	Yes	Go to the next step.
6		No	Repair or replace the wiring harness for a possible open circuit, then go to the next step.
7	VERIFY TROUBLESHOOTING COMPLETED • Make sure to reconnect all disconnected connectors. • Reconnect the negative battery cable. • Clear the DTCs using the M-MDS. (See CLEARING DTC [BCM].) • Perform the BCM DTC inspection using the M-MDS. (See DTC INSPECTION [BCM].) • Is the same DTC present?	Yes	Repeat the inspection from Step 1. • If the malfunction recurs, replace the BCM. (See BODY CONTROL MODULE (BCM) REMOVAL/INSTALLATION.) Go to the next step.
7		No	Go to the next step.
8	VERIFY THAT NO OTHER DTCs ARE PRESENT • Are any DTCs present?	Yes	Go to the applicable DTC inspection. (See DTC TABLE [BCM].)
8		No	DTC troubleshooting completed.
