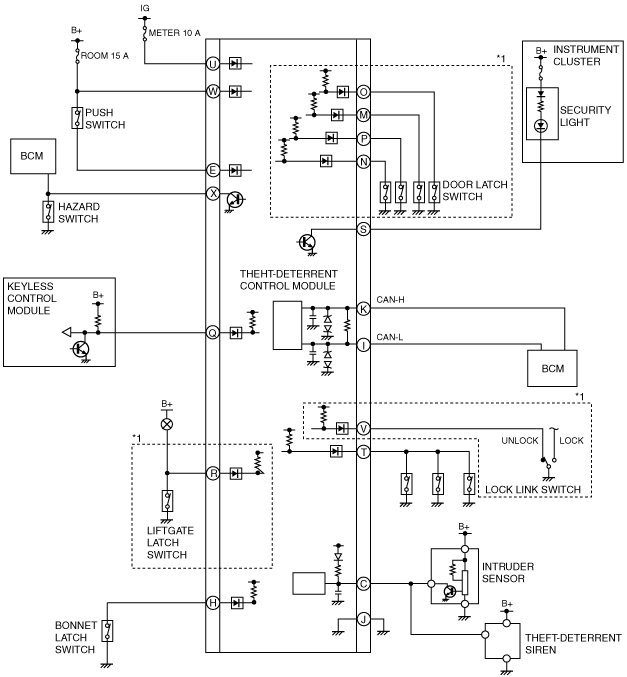

ON-BOARD DIAGNOSTIC WIRING DIAGRAM [THEFT-DETERRENT SYSTEM]

id0902g7960000

am2zzw00006936

*1 :Applied VIN (assumed):

• JMZ DEA4K20#—457375

• JMZ DEA4J20#—457375

• JMZ DEA4520#—457375

• JMZ DEA4620#—457375

• JMZ DEA4550#—457375

• JM6 DE10J2*0 —228806

• JM6 DE10Y2*0 —228806

• JM0 DE10Y2*0 —228806

• JMZ DEA3K20#—305639

• JMZ DEA3J20#—305639

• JMZ DEA3520#—305639

• JMZ DEA3620#—305639
