REFERENCE [CD]

id090362830000

• The CD player/changer has been designed to play CDs bearing the identification logo, COMPACT DISC DIGITAL AUDIO, as shown. No other discs can be played on the CD player/changer other than MP3 applicable one.

am6zzw00006639

• The CD player/changer may not play the following CD:

― Defective CD (e.g., cracked, badly bent, rough edges, scratch, dirty CD condensation)

― CDs accessories (e.g., 8 cm (3 in) disc adapter (with CD player), sticker, label, disk ring, protective tape)

― Nonstandard CD (e.g., Diameter/thickness is out of specification)

Specification: 119.7—120.3 mm (4.668—4.692 in) of diameter, 1.2+0.3 or -0.1 mm (0.047+0.012 or 0.004 in) of thickness

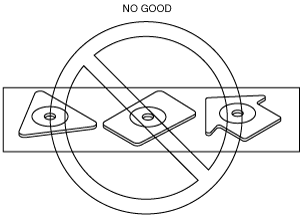

― Do not use non-conventional discs. The CD player/changer could be damaged.

Examples:

am6zzw00006640

• Although the same physical size as the compact disc, SACD uses a different kind of digital audio signal, Direct Stream Digital.

• The CD player/changer may not play the CD-R/RW properly due to the disc condition (excluding the MP3).

MP3-Formatted File

Outline of CD-R and CD-RW

• Definition

― CD-R: The CD-R is a non-rewritable version. Once a section of a CD-R is written, it cannot be erased or rewritten.

― CD-RW: The CD-RW is a re-writable version of CD-ROM and the data can be written an unlimited number of times.

― Since the reflected laser beam amount of a CD-R/RW is less than the reflected laser beam amount of the conventional CD media, the CD player/changer may not play the CD-R/RW or the sound may jump.

― Since the recording quality of the CD-R/RWs vary widely, some CD-R/RWs may not play.

Recording method

• There are two methods for recording.

• Classification by recorder

― Record the audio data in the audio-CD by audio recorder

• The price of the audio recorder and original audio-CD include the copyright fee.

― Record the audio data to a conventional data-CD using a personal computer

• The data-CD is cheaper than the audio-CD. But, there are lower quality CDs.

• Classification by audio data extraction/compression

― Extracted audio data

• The CD-R/RW player can play the extracted audio data.

― Compressed audio data

• It is possible to record a large quantity of music to a disc. The sound quality varies depending on the audio data compression format. The compressed audio data can be played on the applicable player only.

― Types of compression format:

• MP3: MPEG Audio Layer 3—Mazda genuine MP3 applicable CD player is available.

• WMA: Windows Media Audio

• ATRAC: Adaptive TRansform Acoustic Coding

MP3

• The following conditions should be met in order to record the MP3-formatted data to the MP3 applicable CD player:

Media

Applicable to the CD-R/RW

Logical format

ISO 9660 level 1&2 /Joliet /Romeo

Directory hierarchy

To 8 levels

Number of files

Maximum 255 as the total number of files and folders

Maximum of 155 for folders

ID3 TAG

Applicable to Ver1.1, 2.3

File extension

MP3

Packet writing

Not applicable

Bit rate

8 kbps—320 kbps/VBR

Sampling rate

16 kHz—48 kHz

Media	Applicable to the CD-R/RW
Logical format	ISO 9660 level 1&2 /Joliet /Romeo
Directory hierarchy	To 8 levels
Number of files	Maximum 255 as the total number of files and folders Maximum of 155 for folders
ID3 TAG	Applicable to Ver1.1, 2.3
File extension	MP3
Packet writing	Not applicable
Bit rate	8 kbps—320 kbps/VBR
Sampling rate	16 kHz—48 kHz
