FOREWORD [AUDIO]

id0903e1802700

Note

•  Note down all radio programs set by the customer prior to the repairs. Reset all radio programs and adjust the time after the repairs.

Troubleshooting Index

No.	Symptom	Possible DTC
1	NO.1 AF NOISE OR POP NOISE AT ALL SOURCES (RADIO, CD) [AUDIO]	09:Er20, 09:Er21
2	NO.2 NO POWER TO THE ENTIRE AUDIO SYSTEM [AUDIO]	09:Er20
3	NO.3 NO SOUND FROM ALL SPEAKERS [AUDIO]	05:Er07, 09:Er20, 09:Er21, 10:Er07, 22:Er07
4	NO.4 NO SOUND FROM SOME SPEAKERS [AUDIO]	—
5	NO.5 SOUND BREAK-UP OR POOR SOUND QUALITY [AUDIO]	09:Er21
6	NO.6 SOUND BECOMES LOUD OR WEAK WHILE DRIVING THE VEHICLE [AUDIO]	—
7	NO.7 ALC FUNCTION IS INOPERATIVE [AUDIO]	—
8	NO.8 NO AUDIO SYSTEM ILLUMINATION [AUDIO]	09:Er20
9	NO.9 LCD DOES NOT DISPLAY AT ALL [AUDIO]	09:Er20

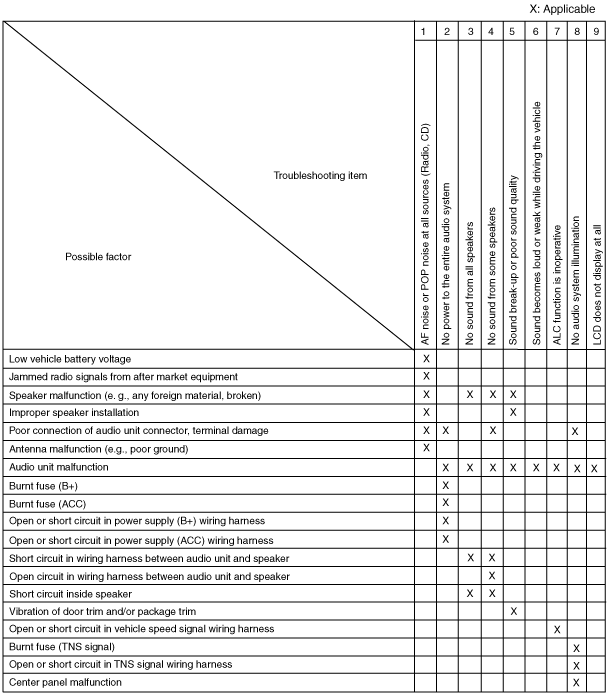

Quick Diagnostic Chart (Entire Audio System)

am2zzw00005926
