FRONT BUMPER DISASSEMBLY/ASSEMBLY
id091000405200
1. Remove the front fog light. (Vehicles with front fog light) (see FRONT FOG LIGHT REMOVAL/INSTALLATION)

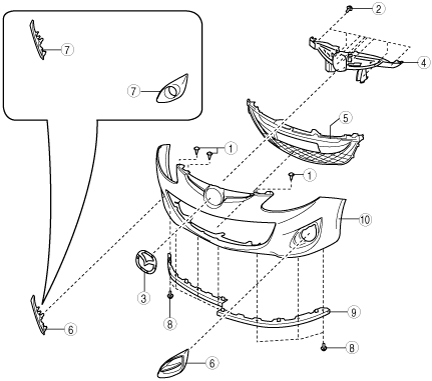

2. Disassemble in the order indicated in the table.
am2uuw00000646
|
|
1
|
Fastener A
|
|
2
|
Screw B
|
|
3
|
Ornament
|
|
4
|
Radiator grille reinforcement
|
|
5
|
Front bumper mesh
|
|
6
|
Fog light hole cover (Vehicles without front fog light)
|
|
7
|
Front fog light cover (Vehicles with front fog light)
|
|
8
|
Rivet
|
|
9
|
Airdam skirt
|
|
10
|
Front bumper face
|
3. Assemble in the reverse order of disassembly.
