SEAL BOARD UPPER REMOVAL/INSTALLATION


id091000466600

1.  Disconnect the negative battery cable.

2.  Remove the front bumper. (See FRONT BUMPER REMOVAL/INSTALLATION)

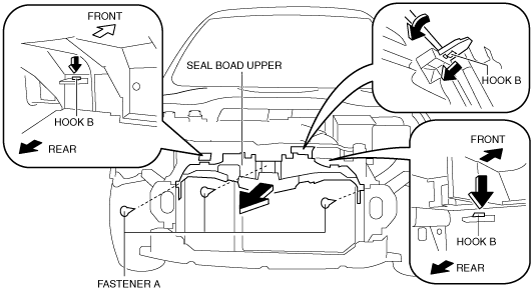

3.  After removing fasteners A, detach hooks B and remove the seal board upper in the direction of the arrow shown in the figure.

am2zzw00003472

4.  Install in the reverse order of removal.
