DOOR ADJUSTMENT

id091100408600

1.  Loosen the door hinge installation bolts.

2.  Adjust the gap and height difference to the standard range by moving the door back and forth, left and right.

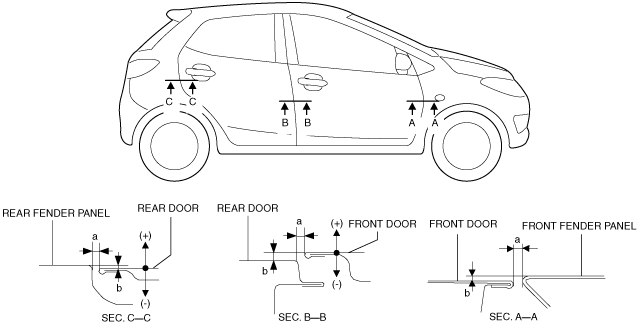

am2zzw00000423

Standard range
a: 3―5 mm {0.12―0.19 in}
b: -1.0―1.0 mm {-0.039―0.039 in}

3.  Tighten the bolts. (See FRONT DOOR REMOVAL/INSTALLATION.) (See REAR DOOR REMOVAL/INSTALLATION.)

4.  If the door does not open/close smoothly, adjust it by loosening the door lock striker installation screw.
