REAR DOOR HINGE REMOVAL/INSTALLATION

id091100810300

1.  Disconnect the negative battery cable.

2.  Remove the following parts:

(1)  Rear door (See REAR DOOR REMOVAL/INSTALLATION.)

(2)  Front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION.)

(3)  Rear scuff plate (See REAR SCUFF PLATE REMOVAL/INSTALLATION.)

(4)  B-pillar lower trim (See B-PILLAR LOWER TRIM REMOVAL/INSTALLATION.)

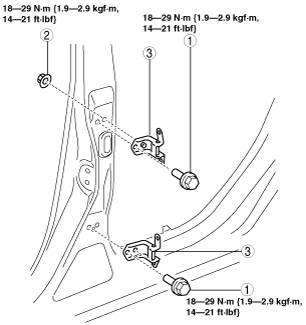

3.  Remove in the order indicated in the table.

am2zzw00000411

1	Bolt
2	Nut
3	Rear door hinge

4.  Install in the reverse order of removal.
