REARVIEW MIRROR REMOVAL

id091200004900

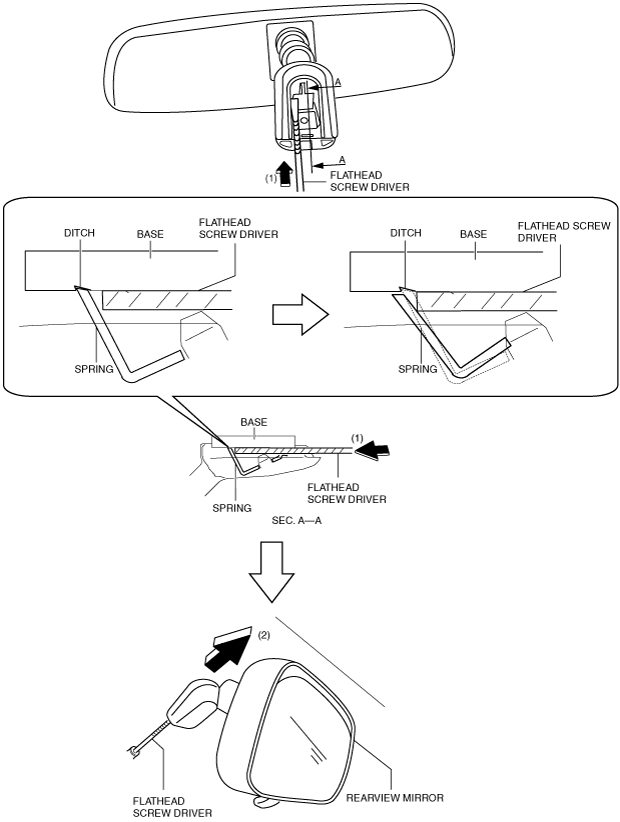

1.  Insert a tape-wrapped flathead screwdriver into the position shown in the figure, press the center part of the spring (1), and pull out the rearview mirror in the direction of the arrow (2) while detaching the spring.

am2zzw00005861

Caution

•  Hold the rearview mirror with your hands and be careful not to allow it come into contact with the headliner. When removing the rearview mirror, it may hit the headliner and cause a damage.
