REAR DOOR GLASS REMOVAL/INSTALLATION

id091200415700

1.  To access the glass installation bolt, position the rear door glass so that the distance from the top of the rear door glass to the upper part of the rear beltline molding is approx. 210 mm {8.27 in}.

am2zzw00005733

2.  Disconnect the negative battery cable.

3.  Remove the sail inner garnish. (See SAIL INNER GARNISH REMOVAL/INSTALLATION.)

4.  Remove the rear door garnish. (See REAR DOOR GARNISH REMOVAL/INSTALLATION.)

5.  Remove the rear door trim. (See REAR DOOR TRIM REMOVAL/INSTALLATION.)

6.  Remove the rear door speaker. (See REAR DOOR SPEAKER REMOVAL/INSTALLATION [5HB].)

7.  Remove the rear door glass guide and glass run channel as a single unit. (See Rear Door Glass Guide Removal Note.)

8.  Remove the hole cover.

am2zzw00000470

9.  Remove the bolts.

Caution

•  If the bolts are removed without supporting the rear door glass, the rear door glass may fall off and be damaged. Remove the bolts while inserting your hand into the rear door speaker installation hole to support the rear door glass.

10.  Lift up the rear door glass, tilt it in the direction of arrow (1) shown in the figure, then remove it in the direction of arrow (2).

am2zzw00000470

11.  Install in the reverse order of removal.

Caution

•  If the bolts are installed without supporting the rear door glass, the rear door glass may fall off and be damaged. When installing the rear door glass, align the glass edge with the rear door glass guide by hand through the speaker installation hole, and then install the bolts.

Rear Door Glass Guide Removal Note

1.  Pull up the rear door weatherstrip and remove the screw.

am2zzw00005734

2.  Remove the bolt.

3.  Slide the rear door glass guide in the direction of the arrow shown in the figure.

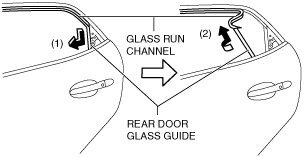

am2zzw00005735

4.  While rotating the rear door glass guide in the direction of the arrow shown in the figure, pull out the rear door glass guide and the glass run channel as a single unit from the rear door.
