REAR WINDOW GLASS INSTALLATION

id091200418100

Warning

•  Using a utility knife with bare hands can cause injury. Always wear gloves when using a utility knife.

Caution

•  Proper installation of the glass may be difficult if sealant is cracked or the glass is pushed out by air pressure when a door is opened/closed with all the window glass closed. Keep the door glass open until the rear window glass installation is completed.

1.  Remove sealant along the perimeter of the glass using a utility knife or scraper. (When reusing the glass)

2.  Clean and degrease an approx. 50 mm {2.0 in} wide strip along the perimeter of the glass.

3.  Inspect the glass for cracks. If it is cracked, chamfer it using sandpaper.

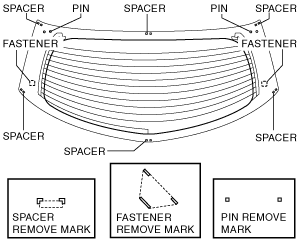

4.  Install the spacers, fasteners, and pins to the glass as shown in the figure.

When reusing the glass, align it with the alignment mark placed before the glass was removed.

am2zzw00007180

5.  Install the fastener to the bead on the body side.

am2zzw00005763

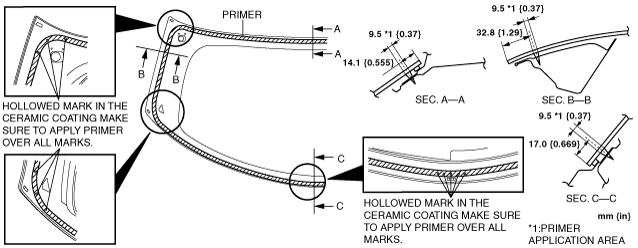

6.  Apply glass primer on the glass as shown in the figure then allow it to dry for approx. 30 min.

Caution

•  To prevent weakening of the primer adhesion, keep the bonding surface free of dirt, moisture, and grease. Do not touch the surface with your hand.

Note

•  Apply primer to the hollowed marks in the ceramic coating.

am2zzw00005764

7.  Cut away the old sealant using a utility knife or scraper so that 1—2 mm {0.04—0.07 in} thickness of sealant remains along the perimeter of the frame.

am2zzw00005765

8.  Clean and degrease along the perimeter of the bonding area on the body.

9.  If the sealant has come off completely in any one place, apply some primer, and allow it to dry for approx. 30 min.

Caution

•  To prevent weakening of the primer adhesion, keep the bonding surface free of dirt, moisture, and grease. Do not touch the surface with your hand.

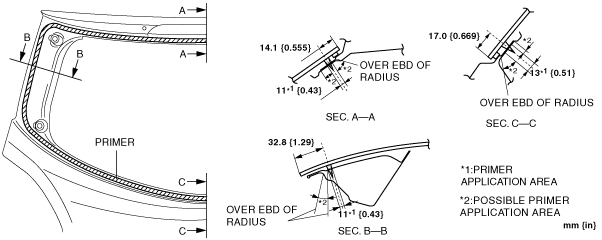

10.  Apply body primer on the body as shown in the figure, then allow it to dry for approx. 30 min.

Caution

•  To prevent weakening of the primer adhesion, keep the bonding surface free of dirt, moisture, and grease. Do not touch the surface with your hand.

Note

•  Apply primer to the hollowed marks in the ceramic coating.

am2zzw00005766

11.  Apply sealant to the area of the glass surface as shown in the figure.

am2zzw00002480

12.  Install the rear window glass.

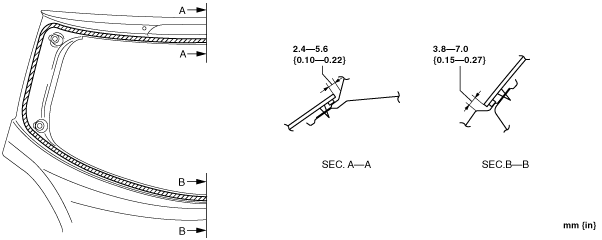

13.  Verify that the gap at the upper and lower parts of the glass is within the specification shown in the figure, then press along the perimeter of the glass.

am2zzw00005767

14.  Connect the filament connector.

15.  Install the high-mount brake light. (See HIGH MOUNT BRAKE LIGHT REMOVAL/INSTALLATION.)

16.  Install the rear spoiler. (See REAR SPOILER INSTALLATION.)

17.  Install the liftgate lower trim. (See LIFTGATE LOWER TRIM REMOVAL/INSTALLATION.)

18.  Install the rear wiper arm and blade. (See REAR WIPER ARM AND BLADE REMOVAL/INSTALLATION.)

19.  Allow the sealant to harden completely.
