POWER OUTER MIRROR INSPECTION
id091200420900

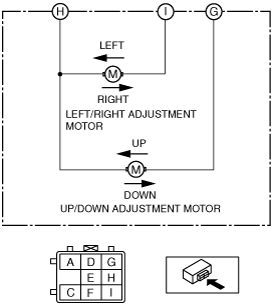

Up/down/left/right Adjustment Motor
1. Disconnect the negative battery cable.
2. Remove the inner garnish. (See INNER GARNISH REMOVAL/INSTALLATION.)
3. Disconnect the power outer mirror connector.
4. Apply battery positive voltage and connect the ground to the power outer mirror terminals and inspect the power outer mirror operation.
am2zzw00005858
|
|
Mirror operation direction |
Terminal |
|
|---|---|---|
|
B+ |
Ground |
|
|
Up
|
G
|
H
|
|
Down
|
H
|
G
|
|
Left
|
I
|
H
|
|
Right
|
H
|
I
|
With Retract/return Motor
1. Disconnect the negative battery cable.
2. Remove the inner garnish. (See INNER GARNISH REMOVAL/INSTALLATION.)
3. Disconnect the power outer mirror connector.
4. Apply battery positive voltage and connect the ground to the power outer mirror terminals and inspect the power outer mirror operation.
am2zzw00005859
|
|
Mirror operation direction |
Terminal |
|
|---|---|---|
|
B+ |
Ground |
|
|
Retract
|
F
|
D
|
|
Return
|
D
|
F
|
With Heated Mirror
1. Disconnect the negative battery cable.
2. Remove the inner garnish. (See INNER GARNISH REMOVAL/INSTALLATION.)
3. Disconnect the power outer mirror connector.
4. Verify that the resistance is as indicated in the table using a tester.
am2zzw00005860
|
am5ezw00004276
|
