POWER WINDOW MAIN SWITCH DISASSEMBLY/ASSEMBLY

id091200987600

1.  Disconnect the negative battery cable.

2.  Remove the front door trim. (See FRONT DOOR TRIM REMOVAL/INSTALLATION.)

3.  Remove the power window main switch. (See FRONT DOOR TRIM DISASSEMBLY/ASSEMBLY.)

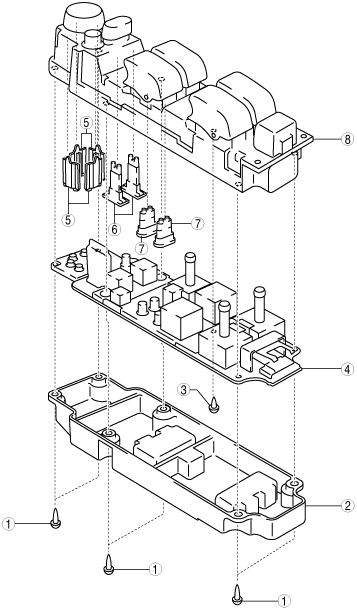

4.  Disassemble in the order shown in the figure.

5.  Assemble in the reverse order of disassembly.

am2zzw00006153

1	Screw A
2	Power window main switch lower housing
3	Screw B
4	Mother board
5	Pusher A
6	Pusher B
7	Pusher C
8	Power window main switch upper housing
