FRONT SEAT SIDE COVER REMOVAL/INSTALLATION

id091300433300

L.H.D.

1. Turn the ignition switch to the LOCK position.

2. Disconnect the negative battery cable and wait 1 min or more. (Vehicles with side air bags)

3. Disconnect the negative battery cable.(Vehicles without side air bags)

4. Remove the front seat. (See FRONT SEAT REMOVAL/INSTALLATION.)

5. Operate the lift lever in the direction of arrow (1) shown in the figure. (Left side of the driver's seat) (Vehicles with seat lifter)

am2zzw00000525

6. Insert a fastener remover from the position of arrow (2) shown in the figure, and remove the lift lever cover by disengaging the tab. (Left side of the driver's seat) (Vehicles with seat lifter)

7. Remove the screws, then remove the lift lever in the direction of the arrow. (Left side of the driver's side) (Vehicles with seat lifter)

am2zzw00000526

8. After operating the recliner knob in the upward direction (1), cut the area indicated in the figure, then remove the recliner knob in the direction of arrow (2).

am2zzw00000527

Caution

• The seat back folds forward when the recliner knob is operated. Be careful when operating the recliner knob.

9. Remove the screw.

am2zzw00003768

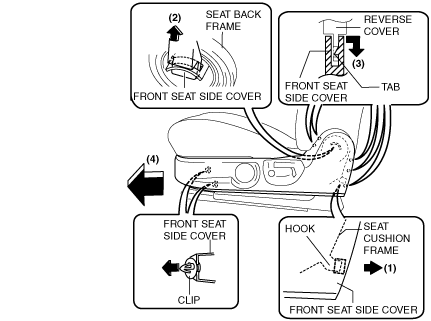

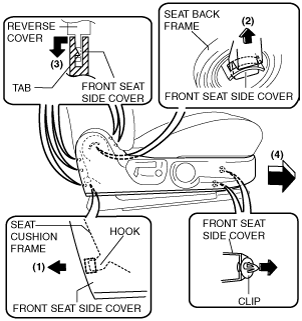

10. Pull the front seat side cover in the order of (1), (2), (3) shown in the figure to disengage the clip, hook and tab.

am2zzw00003769

11. Remove the front seat side cover from the hook by sliding the front seat side cover in the direction of arrow (4) shown in the figure.

12. Install in the reverse order of removal.

R.H.D.

1. Turn the ignition switch to the LOCK position.

2. Disconnect the negative battery cable and wait 1 min or more. (Vehicles with side air bags)

3. Disconnect the negative battery cable.(Vehicles without side air bags)

4. Remove the front seat. (See FRONT SEAT REMOVAL/INSTALLATION.)

5. Operate the lift lever in the direction of arrow (1) shown in the figure. (Right side of the driver's seat) (Vehicles with seat lifter)

am2zzw00002138

6. Insert a fastener remover from the position of arrow (2) shown in the figure, and remove the lift lever cover by disengaging the tab. (Right side of the driver's seat) (Vehicles with seat lifter)

7. Remove the screws, then remove the lift lever in the direction of the arrow. (Right side of the driver's seat) (Vehicles with seat lifter)

am2zzw00003770
